00 - Figures

Authors

Martin Proks

Nazmus Salehin

Published

July 8, 2025

Figure 1
- FA plot
- PAGA
- Pseudotime
- Celltype/Stage density
- CellRank
- Markers (literature)
- DEGs
- Leiden clusters
- Celltype compositions
- scib (yosef lab)
Fig 2
- Schematics of different classifications
- SHAP values
Fig 3

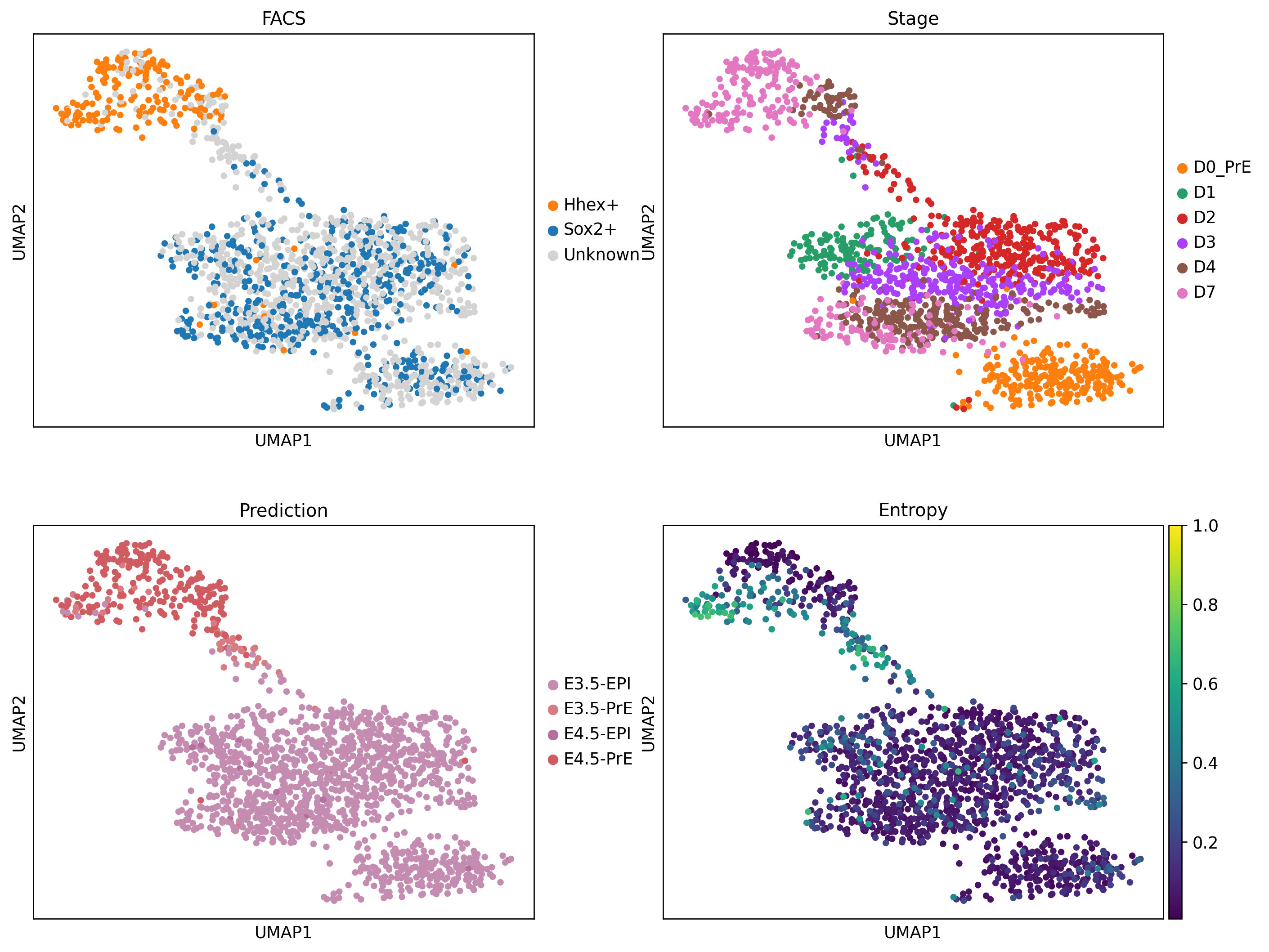

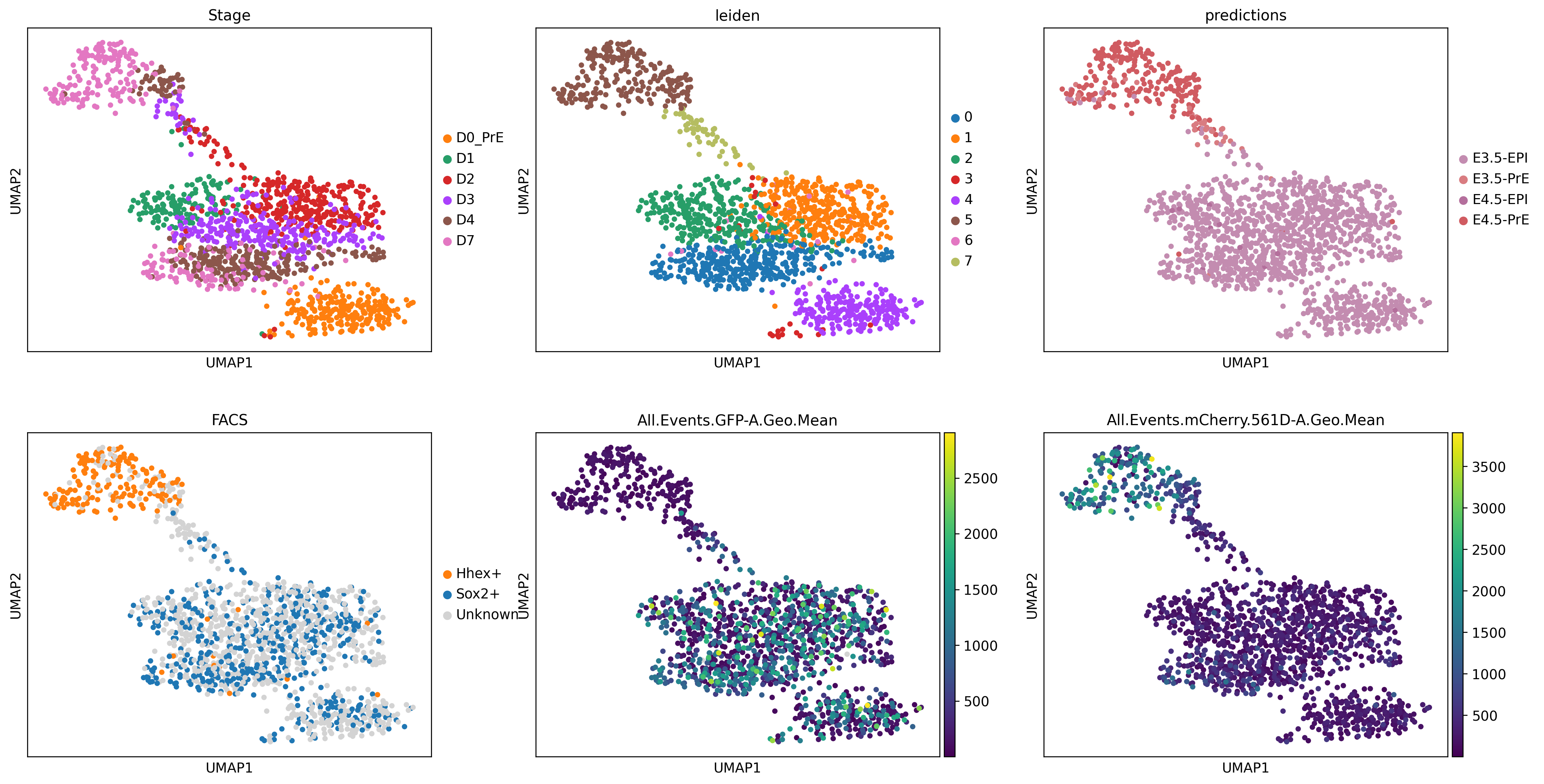

- Query datasets (in vitro)

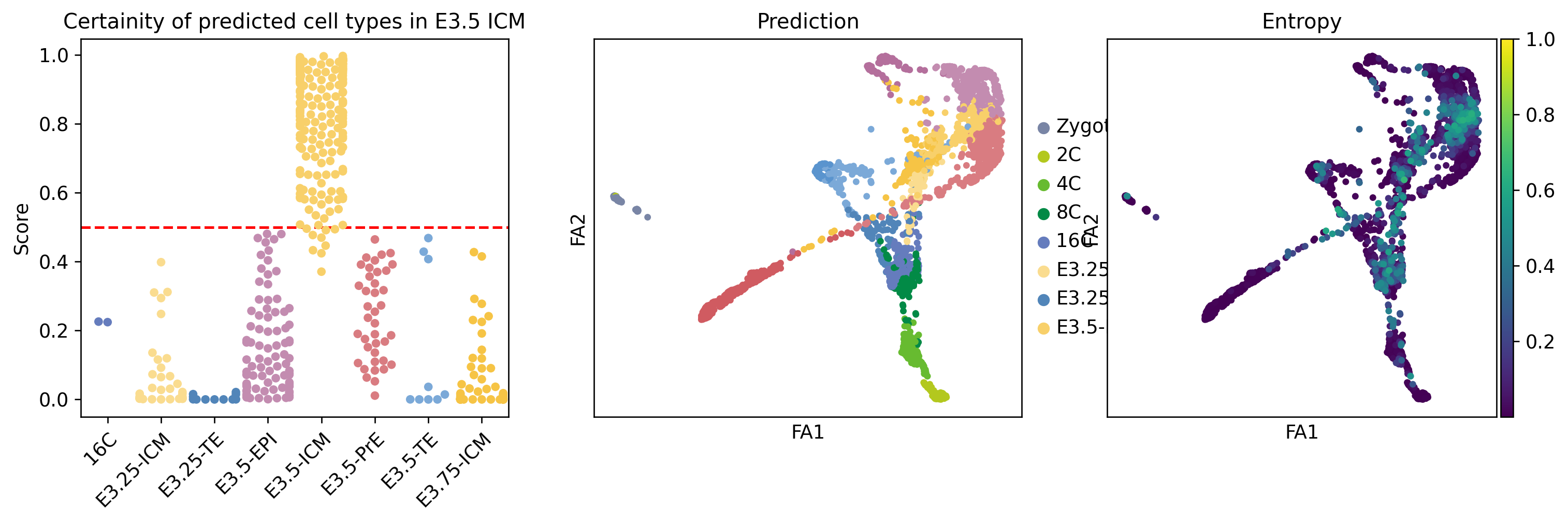

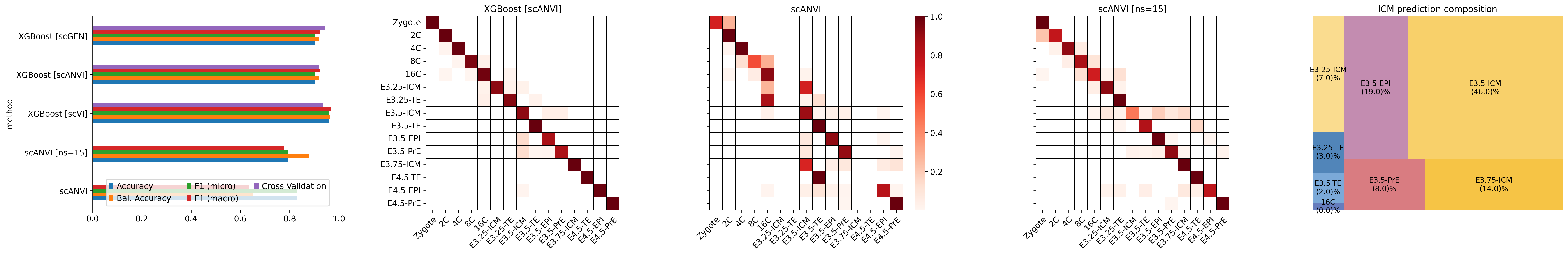

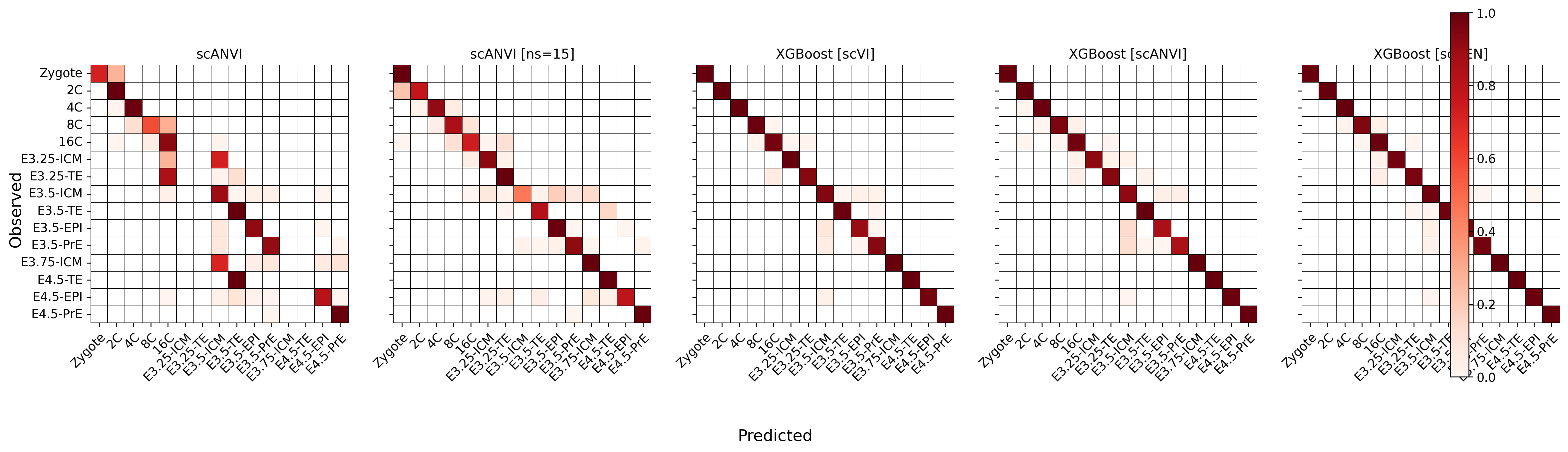

- Classification predictions
- AUROC curves/Entropy

%matplotlib inline

import numpy as np
import pandas as pd
import seaborn as sns

import scvi
import scanpy as sc
import cellrank as cr
import matplotlib.pyplot as plt
from sklearn.preprocessing import MinMaxScaler


import scvelo as scv
scv.set_figure_params('scvelo')

import warnings
warnings.simplefilter("ignore", category=UserWarning)

from scvi.model import SCANVI

%run ../scripts/helpers.py

plt.rcParams['svg.fonttype'] = 'none'

sc.settings.figdir = '../figures/mouse/'
sc.set_figure_params(dpi=120, dpi_save = 300, format='svg', transparent=True, figsize=(6,5))

scv.settings.figdir = '../figures/mouse/'
scv.set_figure_params(dpi=120, dpi_save = 300, format='svg', transparent=True, figsize=(6,5))

mouse = sc.read("../results/03_mouse.processed.h5ad")
mouse.obs.stage = mouse.obs.stage.astype('category').cat.reorder_categories(['Zygote', '2C', '4C', '8C', '16C', 'ICM', 'TE', 'EPI', 'PrE'])

1 Oocyte counts

Borensztein contains 32 and 64 cell cells (also contains oocytes, how many?)
Deng # of occytes
Xu et al., oocyte + pronuclear

n_oocytes = 0

borenszrtein_metadata = pd.read_table("https://ftp.ncbi.nlm.nih.gov/geo/series/GSE80nnn/GSE80810/matrix/GSE80810_series_matrix.txt.gz",
                                      skiprows=31, index_col=0).T
borenszrtein_metadata['SRX'] = borenszrtein_metadata[['!Sample_relation']].iloc[:, :2].agg(' '.join, axis=1).str.extract(r'(SRX[0-9]{6})')
borenszrtein_metadata['ct'] = borenszrtein_metadata['!Sample_characteristics_ch1'].iloc[:, 1].values
borenszrtein_metadata = borenszrtein_metadata.reset_index()

deng_oocytes = ['GSM1112766', 'GSM1112767', 'GSM1112768', 'GSM1112769']

xue_metadata = pd.read_table("https://ftp.ncbi.nlm.nih.gov/geo/series/GSE44nnn/GSE44183/matrix/GSE44183-GPL13112_series_matrix.txt.gz",
                               skiprows=35, index_col=0).T
xue_metadata['SRX'] = xue_metadata[['!Sample_relation']].agg(' '.join, axis=1).str.extract(r'(SRX[0-9]{6})')
xue_metadata['ct'] = xue_metadata['!Sample_source_name_ch1']
xue_metadata = xue_metadata.reset_index()

n_oocytes += borenszrtein_metadata[borenszrtein_metadata.ct.str.contains('Oocyte')].shape[0]
n_oocytes += len(deng_oocytes)
n_oocytes += xue_metadata[xue_metadata.ct == 'oocyte'].shape[0]

print(f'Number of Oocytes in from experiments: {n_oocytes}')

mouse.obs.ct.value_counts()

2 Figures

# lineage_colors = {
#     'Zygote': '#a24f99',
#     '2C': '#55ae6c',
#     '4C': '#93b43e',
#     '8C': '#ba4a50',
#     '16C': '#657cbd',
#     'ICM': '#ffcb5d',
#     'TE': '#5a94ce',
#     'EPI': '#d22a45',
#     'PrE': '#a377b4'
# }
lineage_colors = {
    'Zygote': '#7985A5',
    '2C': '#B3C81E',
    '4C': '#67BB30',
    '8C': '#028A46',
    '16C': '#657cbd',
    'ICM': '#F6C445',
    'TE': '#5a94ce',
    'EPI': '#B46F9C',
    'PrE': '#D05B61'
}

# ct_colors = {
#     'Zygote': '#7985A5',
#     '2C': '#B3C81E',
#     '4C': '#67BB30',
#     '8C': '#028A46',
#     '16C': '#657cbd',
#     'E3.25-ICM': '#e5b653',
#     'E3.25-TE': '#5185b9',
#     'E3.5-ICM': '#cca24a',
#     'E3.5-TE': '#406a94',
#     'E3.5-EPI': '#bd253e',
#     'E3.5-PrE': '#926ba2',
#     'E3.75-ICM': '#F6C445',
#     'E4.5-TE': '#5a94ce',
#     'E4.5-EPI': '#B46F9C',
#     'E4.5-PrE': '#D05B61'
# }
ct_colors = {
    'Zygote': '#7985A5',
    '2C': '#B3C81E',
    '4C': '#67BB30',
    '8C': '#028A46',
    '16C': '#657cbd',
    'E3.25-ICM': '#fadc8f',
    'E3.25-TE': '#5185b9',
    'E3.5-ICM': '#f8d06a',
    'E3.5-TE': '#7ba9d8',
    'E3.5-EPI': '#c38cb0',
    'E3.5-PrE': '#d97c81',
    'E3.75-ICM': '#F6C445',
    'E4.5-TE': '#5a94ce',
    'E4.5-EPI': '#B46F9C',
    'E4.5-PrE': '#D05B61'
}

extras = { 'add_outline': True, 'outline_width': (0.16, 0.02) }

mouse.uns['stage_colors'] = list(lineage_colors.values())
mouse.uns['ct_colors'] = list(ct_colors.values())

sc.pp.neighbors(mouse, use_rep='X_scVI')
sc.tl.diffmap(mouse)
sc.tl.paga(mouse, groups='ct')
sc.tl.draw_graph(mouse, init_pos='paga', n_jobs=10)

sc.pl.draw_graph(mouse, color=['stage', 'timepoint', 'ct'], frameon=True, wspace=0.2)

3 DR

sc.pl.draw_graph(mouse, color=['stage', 'leiden', 'ct'], frameon=True, wspace=0.2, save="_dr_.svg")

sc.pl.tsne(mouse, color=['stage', 'leiden', 'ct'], frameon=True, wspace=0.2, save="_dr_.svg")

sc.pl.umap(mouse, color=['stage', 'leiden', 'ct'], frameon=True, wspace=0.2, save="_dr_.svg")

3.1 FA plot

sc.pl.embedding(mouse, basis='X_draw_graph_fa', color=['stage'], title='', legend_loc=None,
                frameon=False, **extras, save="_stage.svg")

sc.pl.embedding(mouse, basis='X_draw_graph_fa', color='leiden', title='', legend_loc='on data', legend_fontoutline=2,
                frameon=False, **extras, save="_leiden.svg")

sc.pl.embedding(mouse, basis='X_draw_graph_fa', color='leiden', title='', frameon=False, **extras, save="_leiden_2.svg")

mouse.obs['t_scaled'] = MinMaxScaler().fit_transform(mouse.obs['t'].values.reshape(-1, 1)).flatten()

sc.pl.embedding(mouse, basis='X_draw_graph_fa', color=['t_scaled', 'dpt_pseudotime'], title=['scFates pseudotime', 'dpt_pseudotime'],
                legend_loc=None, colorbar_loc='right', frameon=True, cmap='viridis', **extras, save="_pseudotimes.svg")

sc.tl.embedding_density(mouse, basis='draw_graph_fa', groupby='stage')
sc.pl.embedding_density(mouse, basis='draw_graph_fa', key='draw_graph_fa_density_stage', ncols=3, save='.svg')

sc.tl.embedding_density(mouse, basis='draw_graph_fa', groupby='ct')
sc.pl.embedding_density(mouse, basis='draw_graph_fa', key='draw_graph_fa_density_ct', ncols=3, save='.svg')

3.2 PAGA

scv.pl.paga(mouse, basis='draw_graph_fa', title="", **extras, frameon=True, save="ct.svg")

3.3 scGEN

mouse_scgen = sc.read("../results/02_mouse_integration/scgen/adata.h5ad")

sc.pp.neighbors(mouse_scgen, use_rep='X_scgen')
sc.tl.diffmap(mouse_scgen)
sc.tl.paga(mouse_scgen, groups='ct')
sc.pl.paga(mouse_scgen)
sc.tl.draw_graph(mouse_scgen, init_pos='paga', n_jobs=10)

mouse_scgen.uns['stage_colors'] = list(lineage_colors.values())[1:] + [lineage_colors['Zygote']]
sc.pl.embedding(mouse_scgen, basis='X_draw_graph_fa', color=['stage'], title='scGen',
                **extras, save="_scgen_stage.svg")

4 Trajectory segmentation

import scFates as scf

# with plt.rc_context({"figure.figsize": (6, 6)}):
fig, ax = plt.subplots(1, 3, figsize=[18, 5])
scf.pl.dendrogram(mouse,color="seg", show=False, ax=ax[0])
scf.pl.dendrogram(mouse,color="ct", legend_loc="on data", color_milestones=True, legend_fontoutline=True, show=False, ax=ax[1])
sc.pl.embedding(mouse, basis='X_draw_graph_fa', color='seg', ax=ax[2])
fig.tight_layout()
fig.savefig("../figures/mouse/scfates.svg")

5 CellRank

from cellrank.kernels import PseudotimeKernel

pk = PseudotimeKernel(mouse, time_key="t")
pk.compute_transition_matrix()
g = cr.estimators.GPCCA(pk)
g.fit(cluster_key="stage", n_states=[4, 12])
g.predict_terminal_states(n_states=3)
g.predict_initial_states(allow_overlap=True)
g.compute_fate_probabilities()

mouse.uns['clusters_gradients_colors'] = [lineage_colors['Zygote'], lineage_colors['TE'], lineage_colors['PrE'], lineage_colors['EPI']]
g.plot_fate_probabilities(same_plot=True, basis='X_draw_graph_fa', **extras, legend_loc=False, save="mouse_terminal_stages.svg")

g.plot_fate_probabilities(same_plot=False, basis='X_draw_graph_fa', legend_loc=False, **extras, save="mouse_terminal_stages_all.svg")

6 Stats: Cell compositions

experiment_stats = mouse.obs.groupby(['experiment', 'stage']).apply(len).unstack().fillna(0).iloc[::-1]
experiment_stats.plot(kind='barh', stacked=True, color=lineage_colors)

for y, x in enumerate(experiment_stats.sum(axis=1).astype(int)):
    plt.annotate(str(x), xy=(x + 10, y), va='center')

plt.gca().spines[['right', 'top']].set_visible(False)
plt.gca().legend(frameon=False)
_ = plt.ylabel('Publications')
_ = plt.xlabel('Number of cells')
plt.savefig("../figures/mouse/stats_publications.svg")

lineage_stats = mouse.obs.groupby('stage').apply(len).iloc[::-1]
lineage_stats.plot(kind='barh', color=list(lineage_colors.values()))

for y, x in enumerate(lineage_stats.astype(int)):
    plt.annotate(str(x), xy=(x + 10, y), va='center')

plt.gca().spines[['right', 'top']].set_visible(False)
_ = plt.ylabel('Lineage')
_ = plt.xlabel('Number of cells')
plt.savefig("../figures/mouse/stats_stages.svg")

leiden_stats = sc.metrics.confusion_matrix('stage', 'leiden', data=mouse.obs) * 100
leiden_stats.plot(kind='barh', stacked=True)

plt.gca().spines[['right', 'top']].set_visible(False)
plt.gca().legend(title='Clusters', bbox_to_anchor=(0.99, 1.02), loc='upper left', frameon=False)
_ = plt.ylabel('Lineages')
_ = plt.xlabel('Cluster %')
plt.savefig("../figures/mouse/stats_cluster_vs_lineages.svg")

leiden_stats = sc.metrics.confusion_matrix('leiden', 'stage', data=mouse.obs) * 100
leiden_stats.plot(kind='barh', stacked=True, color=lineage_colors)

plt.gca().spines[['right', 'top']].set_visible(False)
plt.gca().legend(title='Clusters', bbox_to_anchor=(0.99, 1.02), loc='upper left', frameon=False)
_ = plt.ylabel('Lineages')
_ = plt.xlabel('Cluster %')
plt.savefig("../figures/mouse/stats_cluster_vs_lineages.svg")

sc.pl.embedding(mouse, basis='X_draw_graph_fa', color=['stage', 'leiden'], title='', frameon=False)

leiden_stats = sc.metrics.confusion_matrix('leiden', 'stage', data=mouse.obs) * 100
leiden_stats_order = ['13', '12', '7', '1', '11', '6', '0', '14', '2', '5', '4', '9', '8', '3', '10']
leiden_stats.loc[leiden_stats_order[::-1]].plot(kind='barh', stacked=True, color=lineage_colors)

plt.gca().spines[['right', 'top']].set_visible(False)
plt.gca().legend(title='Clusters', bbox_to_anchor=(0.99, 1.02), loc='upper left', frameon=False)
_ = plt.ylabel('Lineages')
_ = plt.xlabel('Cluster %')
plt.savefig("../figures/mouse/stats_cluster_vs_lineages.svg")

technology_stats = mouse.obs.groupby('technology').apply(len).sort_values()
technology_stats.plot(kind='barh', color='grey')

for y, x in enumerate(technology_stats.astype(int)):
    plt.annotate(str(x), xy=(x + 10, y), va='center')

plt.gca().spines[['right', 'top']].set_visible(False)
_ = plt.ylabel('Technology')
_ = plt.xlabel('Number of cells')
plt.savefig("../figures/mouse/stats_technology.svg")

fig, ax = plt.subplots(1, 4, figsize=[20, 4])

# Plot #1
experiment_stats = experiment_stats.loc[experiment_stats.sum(axis=1).sort_values().index.tolist()]
experiment_stats.plot(kind='barh', stacked=True, color=lineage_colors, ax=ax[0])
for y, x in enumerate(experiment_stats.sum(axis=1).astype(int)):
    ax[0].annotate(str(x), xy=(x + 10, y), va='center')
ax[0].spines[['right', 'top']].set_visible(False)
ax[0].legend(frameon=False)
ax[0].set_ylabel('Publications')
ax[0].set_xlabel('Number of cells')

# Plot #2
lineage_stats = mouse.obs.groupby('stage').apply(len)
lineage_stats.plot(kind='barh', color=list(lineage_colors.values()), ax=ax[1])
for y, x in enumerate(lineage_stats.astype(int)):
    ax[1].annotate(str(x), xy=(x + 10, y), va='center')
ax[1].spines[['right', 'top']].set_visible(False)
ax[1].set_ylabel('Lineage')
ax[1].set_xlabel('Number of cells')

# Plot #3
technology_stats = mouse.obs.groupby('technology').apply(len).sort_values()
technology_stats.plot(kind='barh', color='grey', ax=ax[2])
for y, x in enumerate(technology_stats.astype(int)):
    ax[2].annotate(str(x), xy=(x + 10, y), va='center')
ax[2].spines[['right', 'top']].set_visible(False)
ax[2].set_ylabel('Technology')
ax[2].set_xlabel('Number of cells')

# Plot #4
leiden_stats = sc.metrics.confusion_matrix('leiden', 'stage', data=mouse.obs) * 100
leiden_stats.plot(kind='barh', stacked=True, ax=ax[3])
ax[3].spines[['right', 'top']].set_visible(False)
ax[3].legend(title='Clusters', bbox_to_anchor=(0.99, 1.02), loc='upper left', frameon=False)
ax[3].set_ylabel('Lineages')
ax[3].set_xlabel('Cluster %')

fig.tight_layout(w_pad=1)
fig.savefig("../figures/mouse/stats_all.svg")

7 Markers

vae = scvi.model.SCVI.load("../results/02_mouse_integration/scvi/", mouse)

mouse.layers['scVI_denoised'] = vae.get_normalized_expression(n_samples=10, return_mean=True)

7.0.1 Literature

lineage_markers = pd.read_excel("../data/external/mouse_lineage_markers.xlsx", sheet_name="Sheet1").fillna('')[lineage_colors.keys()]
display(lineage_markers)

lineage_markers = {
    lineage : mouse.var_names.intersection([str.lower(g) for g in genes])
    for lineage, genes in lineage_markers.T.iterrows()
}

lineage_markers

sc.pl.dotplot(mouse, lineage_markers, groupby='stage', standard_scale='var')
sc.pl.dotplot(mouse, lineage_markers, groupby='stage', standard_scale='var', layer='scVI_denoised')

sc.pl.matrixplot(mouse, lineage_markers, groupby='stage', standard_scale='var', cmap='viridis')
sc.pl.matrixplot(mouse, lineage_markers, groupby='stage', standard_scale='var', cmap='viridis', layer='scVI_denoised')

pub_markers = {
    'Zygote': ['zswim3', 'padi6'],
    '2C': ['zfp352', 'zscan4d'],
    '4C': ['sox21'],
    '8C': ['prdm14', 'pou5f1'],
    '16C': ['tfap2c', 'gata3'],
    'ICM': ['tfcp2l1', 'pou5f1'],
    'TE': ['eomes', 'cdx2'],
    'EPI': ['sox2', 'nanog'],
    'PrE': ['gata6', 'pdgfra']
}
ax = sc.pl.dotplot(mouse, sum(pub_markers.values(), []), groupby='stage', standard_scale='var', cmap='GnBu', figsize=[12, 3.5], show=False)
_ = ax['mainplot_ax'].set_xticklabels(sum(pub_markers.values(), []), rotation = 45, ha="right", rotation_mode="anchor")
plt.savefig("../figures/mouse/dotplot_pub_markers.svg")

8 SCVI DGEs

m_lineage = vae.differential_expression(groupby="stage")
m_lineage_filt = filter_markers(m_lineage, n_genes=10)

display(pd.DataFrame.from_dict(m_lineage_filt, orient='index').transpose())

sc.pl.dotplot(mouse, m_lineage_filt, groupby='stage', dendrogram=False, standard_scale='var')
sc.pl.matrixplot(mouse, m_lineage_filt, groupby='stage', dendrogram=False, standard_scale='var')

9 Classifiers

import scgen
import squarify
import matplotlib.cm as cm
from matplotlib.colors import Normalize
import xgboost as xgb


from sklearn.metrics import accuracy_score, balanced_accuracy_score, f1_score

LABELS = ['scANVI', 'scANVI [ns=15]', 'XGBoost [scVI]', 'XGBoost [scANVI]', 'XGBoost [scGEN]']

mouse.obs.ct.value_counts()

E3.5-ICM     459
E3.5-PrE     254
E4.5-PrE     207
16C          198
E3.5-EPI     175
8C           115
4C           114
E4.5-EPI     108
E3.5-TE      107
2C            86
E3.75-ICM     48
E3.25-TE      47
E3.25-ICM     40
E4.5-TE       28
Zygote        18
Name: ct, dtype: int64

predictions = mouse.obs[['ct']].copy()
xg_clf = xgb.XGBClassifier()

lvae = scvi.model.SCANVI.load("../results/02_mouse_integration/scanvi/")
predictions['scANVI'] = lvae.predict()

lvae = scvi.model.SCANVI.load("../results/02_mouse_integration/scanvi_ns_15/")
predictions['scANVI_ns15'] = lvae.predict()

vae = scvi.model.SCVI.load("../results/02_mouse_integration/scvi/")
xg_clf.load_model("../results/02_mouse_integration/05_scVI_xgboost.json")
predictions['xg_scVI'] = predictions.ct.cat.categories[xg_clf.predict(vae.get_normalized_expression(return_mean=True, return_numpy=True))]

lvae = scvi.model.SCANVI.load("../results/02_mouse_integration/scanvi/")
xg_clf.load_model("../results/02_mouse_integration/05_scANVI_xgboost.json")
predictions['xg_scANVI'] = predictions.ct.cat.categories[xg_clf.predict(lvae.get_normalized_expression(return_mean=True, return_numpy=True))]

mscgen = scgen.SCGEN.load("../results/02_mouse_integration/scgen/")
xg_clf.load_model("../results/02_mouse_integration/05_scGEN_xgboost.json")
predictions['xg_scGEN'] = predictions.ct.cat.categories[xg_clf.predict(mscgen.get_decoded_expression())]

INFO     File ../results/02_mouse_integration/scanvi/model.pt already downloaded
INFO     File ../results/02_mouse_integration/scanvi_ns_15/model.pt already downloaded
INFO     File ../results/02_mouse_integration/scvi/model.pt already downloaded
INFO     File ../results/02_mouse_integration/scanvi/model.pt already downloaded
INFO     File ../results/02_mouse_integration/scgen/model.pt already downloaded

mouse_accuracy = pd.DataFrame([
    [
        accuracy_score(predictions.ct.tolist(), predictions[clf].tolist()),
        balanced_accuracy_score(predictions.ct.tolist(), predictions[clf].tolist()),
        f1_score(predictions.ct.tolist(), predictions[clf].tolist(), average="micro"),
        f1_score(predictions.ct.tolist(), predictions[clf].tolist(), average="macro")
    ] for clf in predictions.columns[1:]
], index=predictions.columns[1:], columns=['Accuracy', 'Bal. Accuracy', 'F1 (micro)', 'F1 (macro)'])

mouse_accuracy

	Accuracy	Bal. Accuracy	F1 (micro)	F1 (macro)
scANVI	0.830339	0.649818	0.830339	0.634290
scANVI_ns15	0.793413	0.879503	0.793413	0.777624
xg_scVI	0.963074	0.975837	0.963074	0.976084
xg_scANVI	0.941617	0.960426	0.941617	0.963795
xg_scGEN	0.983034	0.984459	0.983034	0.986173

fig, ax = plt.subplots(1, 5, figsize=[20, 6], sharey=True, sharex=False)
for idx, clf in enumerate(mouse_accuracy.index):
    conf_df = pd.DataFrame(0, index=predictions.ct.cat.categories, columns=predictions.ct.cat.categories) + sc.metrics.confusion_matrix('ct', clf, data=predictions)
    conf_df = conf_df[predictions.ct.cat.categories]
    conf_df[conf_df == 0] = np.nan
    sns.heatmap(conf_df, linewidths=0.2, cmap='Reds', ax=ax[idx], square=True, cbar=None, linewidth=.5, linecolor='black')
    ax[idx].set_title(LABELS[idx])
    ax[idx].set_xticklabels(predictions.ct.cat.categories.tolist(), rotation=45, ha="right", rotation_mode="anchor")

fig.colorbar(cm.ScalarMappable(norm=Normalize(0,1), cmap='Reds'), ax=ax.ravel(), fraction=0.048)
fig.supxlabel('Predicted')
fig.supylabel('Observed')
fig.tight_layout()
fig.savefig("../figures/mouse/00_clf_confusion_mat.svg")

# fig, ax = plt.subplots(2, 2, figsize=[9, 9], sharey=True, sharex=True)
# for idx, clf in enumerate(['xg_scVI', 'xg_scANVI', 'xg_scGEN', 'scANVI']):
#     sns.heatmap(sc.metrics.confusion_matrix('ct', clf, data=predictions)[predictions.ct.cat.categories],
#                 linewidths=0.2, cmap='viridis', ax=ax[idx // 2, idx % 2], square=True, cbar=None)
#     ax[idx // 2, idx % 2].set_xlabel('')
#     ax[idx // 2, idx % 2].set_ylabel('')
#     ax[idx // 2, idx % 2].set_title(f'XGBoost [{clf[3:]}]')
#     ax[idx // 2, idx % 2].set_xticklabels(predictions.ct.cat.categories.tolist(), rotation=45, ha="right", rotation_mode="anchor")
# ax[1, 1].set_title('scANVI')

# fig.colorbar(cm.ScalarMappable(norm=Normalize(0,1), cmap='viridis'), ax=ax.ravel(), fraction=0.048)
# fig.supxlabel('Predicted')
# fig.supylabel('Observed')
# fig.tight_layout()
# # fig.savefig("../figures/mouse/00_clf_confusion_mat.svg")

fig, ax = plt.subplots(1, 5, figsize=[30, 5])

mouse_accuracy_csv = pd.read_csv("../results/05_mouse_classifier_stats.csv", index_col=0)
mouse_accuracy_csv.columns = ['Accuracy', 'Bal. Accuracy', 'F1 (micro)', 'F1 (macro)', 'Cross Validation']
mouse_accuracy_csv.plot(kind='barh', ax=ax[0])
ax[0].spines[['right', 'top']].set_visible(False)
ax[0].legend(loc='lower center', ncols=3)
ax[0].set_yticklabels(LABELS)

# XGBoost scANVI
conf_df = pd.DataFrame(0, index=predictions.ct.cat.categories, columns=predictions.ct.cat.categories) + sc.metrics.confusion_matrix('ct', 'xg_scANVI', data=predictions)
conf_df = conf_df[predictions.ct.cat.categories]
conf_df[conf_df == 0] = np.nan
sns.heatmap(conf_df, linewidths=0.2, cmap='Reds', ax=ax[1], square=True, cbar=None, linewidth=.5, linecolor='black')
ax[1].set_title(LABELS[3])
ax[1].set_xticklabels(predictions.ct.cat.categories.tolist(), rotation=45, ha="right", rotation_mode="anchor")

# scANVI
conf_df = pd.DataFrame(0, index=predictions.ct.cat.categories, columns=predictions.ct.cat.categories) + sc.metrics.confusion_matrix('ct', 'scANVI', data=predictions)
conf_df = conf_df[predictions.ct.cat.categories]
conf_df[conf_df == 0] = np.nan
sns.heatmap(conf_df, linewidths=0.2, cmap='Reds', ax=ax[2], square=True, cbar=True, linewidth=.5, linecolor='black')
ax[2].set_title(LABELS[0])
ax[2].set_xticklabels(predictions.ct.cat.categories.tolist(), rotation=45, ha="right", rotation_mode="anchor")
ax[2].set_yticklabels([' '] * predictions.ct.cat.categories.size)

# scANVI_ns15
conf_df = pd.DataFrame(0, index=predictions.ct.cat.categories, columns=predictions.ct.cat.categories) + sc.metrics.confusion_matrix('ct', 'scANVI_ns15', data=predictions)
conf_df = conf_df[predictions.ct.cat.categories]
conf_df[conf_df == 0] = np.nan
sns.heatmap(conf_df, linewidths=0.2, cmap='Reds', ax=ax[3], square=True, cbar=None, linewidth=.5, linecolor='black')
ax[3].set_title(LABELS[1])
ax[3].set_xticklabels(predictions.ct.cat.categories.tolist(), rotation=45, ha="right", rotation_mode="anchor")
ax[3].set_yticklabels([' '] * predictions.ct.cat.categories.size)

# ICM zoom
icm_accuracy = (conf_df.loc['E3.5-ICM'].dropna() * 100).sort_values(ascending=True)
squarify.plot(sizes=icm_accuracy,
              label=icm_accuracy.index + '\n(' + icm_accuracy.round().values.astype(str) + ')%',
              color=[ct_colors[ct] for ct in icm_accuracy.index],
              text_kwargs={'fontsize': '10'}, ax=ax[4]
             )
ax[4].axis("off")
ax[4].set_title('ICM prediction composition')
fig.tight_layout()
fig.savefig("../figures/mouse/00_clf_accuracy.svg")

lvae = scvi.model.SCANVI.load("../results/02_mouse_integration/scanvi_ns_15/")

lvae.adata.obsm['x_scANVI'] = lvae.get_latent_representation()
sc.pp.neighbors(lvae.adata, use_rep='x_scANVI')
sc.tl.paga(lvae.adata, groups='ct')
sc.tl.draw_graph(lvae.adata)
lvae.adata.obs["predictions"] = lvae.predict()
lvae.adata.obs["predictions"] = lvae.adata.obs["predictions"].astype('category')
lvae.adata.obs.predictions = lvae.adata.obs.predictions.cat.reorder_categories(ct_colors.keys())
lvae.adata.obs['entropy'] = 1 - lvae.predict(soft=True).max(axis=1)

INFO     File ../results/02_mouse_integration/scanvi_ns_15/model.pt already downloaded

icm_entropy = predictions.query('ct == "E3.5-ICM"')[['scANVI_ns15']].copy()
icm_entropy['Score'] = lvae.predict(soft=True).loc[icm_entropy.index, 'E3.5-ICM']
icm_entropy.scANVI_ns15 = icm_entropy.scANVI_ns15.astype('category')

fig, ax = plt.subplots(1, 3, figsize=[15, 4])

sns.swarmplot(x='scANVI_ns15', y='Score', palette=[ct_colors[ct] for ct in icm_entropy.scANVI_ns15.cat.categories], data=icm_entropy, ax=ax[0])
ax[0].set_xticklabels(icm_entropy.scANVI_ns15.cat.categories, rotation=45, ha="right", rotation_mode="anchor")
ax[0].legend(frameon=False)
ax[0].axhline(y=0.5, c='r', linestyle='--')
ax[0].set_xlabel('')
ax[0].set_title('Certainity of predicted cell types in E3.5 ICM')

# plot 2, 3
lvae.adata.uns['predictions_colors'] = [ct_colors[ct] for ct in lvae.adata.obs.predictions.cat.categories]
sc.pl.draw_graph(lvae.adata, color='predictions', title='Prediction', show=False, ax=ax[1])
sc.pl.draw_graph(lvae.adata, color='entropy', vmax=1, cmap='viridis', title='Entropy', show=False, ax=ax[2])

plt.savefig("../figures/mouse/00_ICM_prediction_score.svg")

No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.

10 Supl. Table 2

writer = pd.ExcelWriter("../results/suppl-tab-2.xlsx", engine="xlsxwriter")

pd.read_csv("../results/05_mouse_classifier_stats.csv", index_col=0).to_excel(writer, sheet_name="mouse_overall")
for clf in mouse_accuracy.index:
    df = pd.DataFrame(0, index=predictions.ct.cat.categories, columns=predictions.ct.cat.categories) + sc.metrics.confusion_matrix('ct', clf, data=predictions)
    df = df.fillna(0)[predictions.ct.cat.categories]
    df.to_excel(writer, sheet_name=f"mouse_{clf}")
writer.close()

11 Figure 3 + suppl

11.1 Proks et al.,

vitro = sc.read("../results/06_proks_et_al.h5ad")
vitro.uns['predictions_colors'] = [ct_colors[x] for x in vitro.obs.predictions.cat.categories]

vitro.uns['FACS_colors'] = ['#ff7f0e', '#1f77b4', '#D3D3D3']

sc.pl.umap(vitro, ncols=3, cmap='viridis',
           color=['Stage', 'leiden', 'predictions', 'FACS', 'All.Events.GFP-A.Geo.Mean', 'All.Events.mCherry.561D-A.Geo.Mean'])

sc.pl.umap(vitro, color=['FACS', 'Stage', 'predictions', 'entropy'], ncols=2, vmax=1, cmap='viridis', title=['FACS', 'Stage', 'Prediction', 'Entropy'], save='00_query_proks.svg')

WARNING: saving figure to file ../figures/mouse/umap00_query_proks.svg

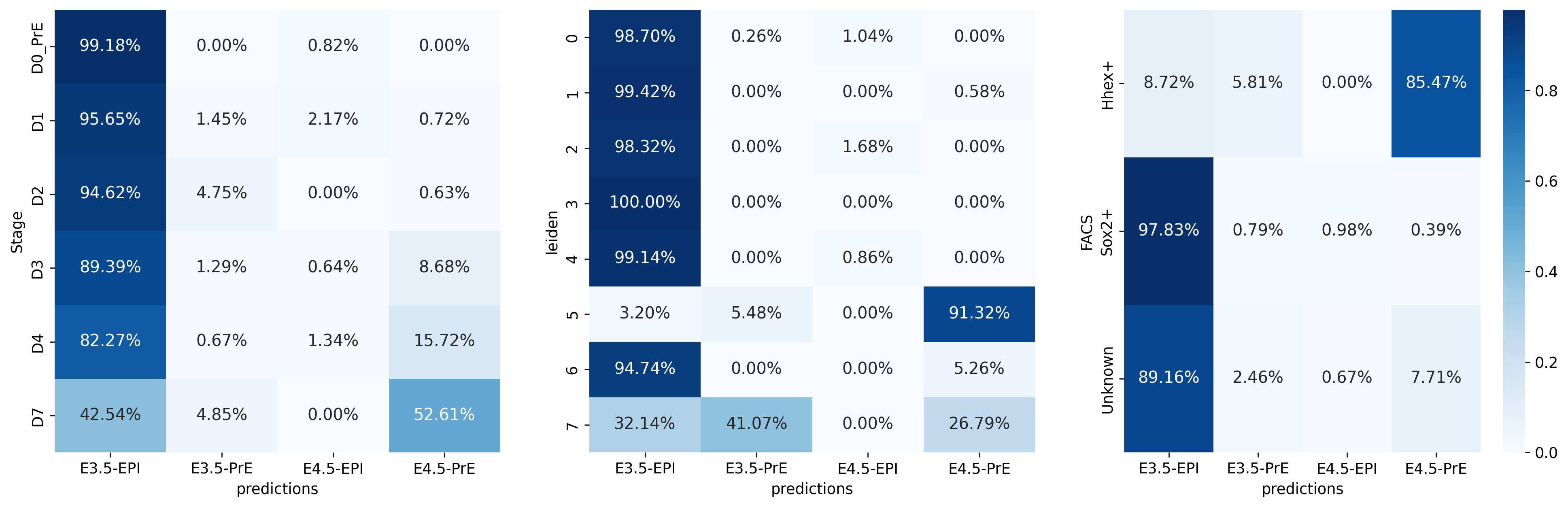

fig, ax = plt.subplots(1, 3, figsize=[20, 6])
sns.heatmap(sc.metrics.confusion_matrix("Stage", "predictions", vitro.obs), annot=True, fmt='.2%', cmap='Blues', ax=ax[0], cbar=False)
sns.heatmap(sc.metrics.confusion_matrix("leiden", "predictions", vitro.obs), annot=True, fmt='.2%', cmap='Blues', ax=ax[1], cbar=False)
sns.heatmap(sc.metrics.confusion_matrix("FACS", "predictions", vitro.obs), annot=True, fmt='.2%', cmap='Blues', ax=ax[2])

<Axes: xlabel='predictions', ylabel='FACS'>

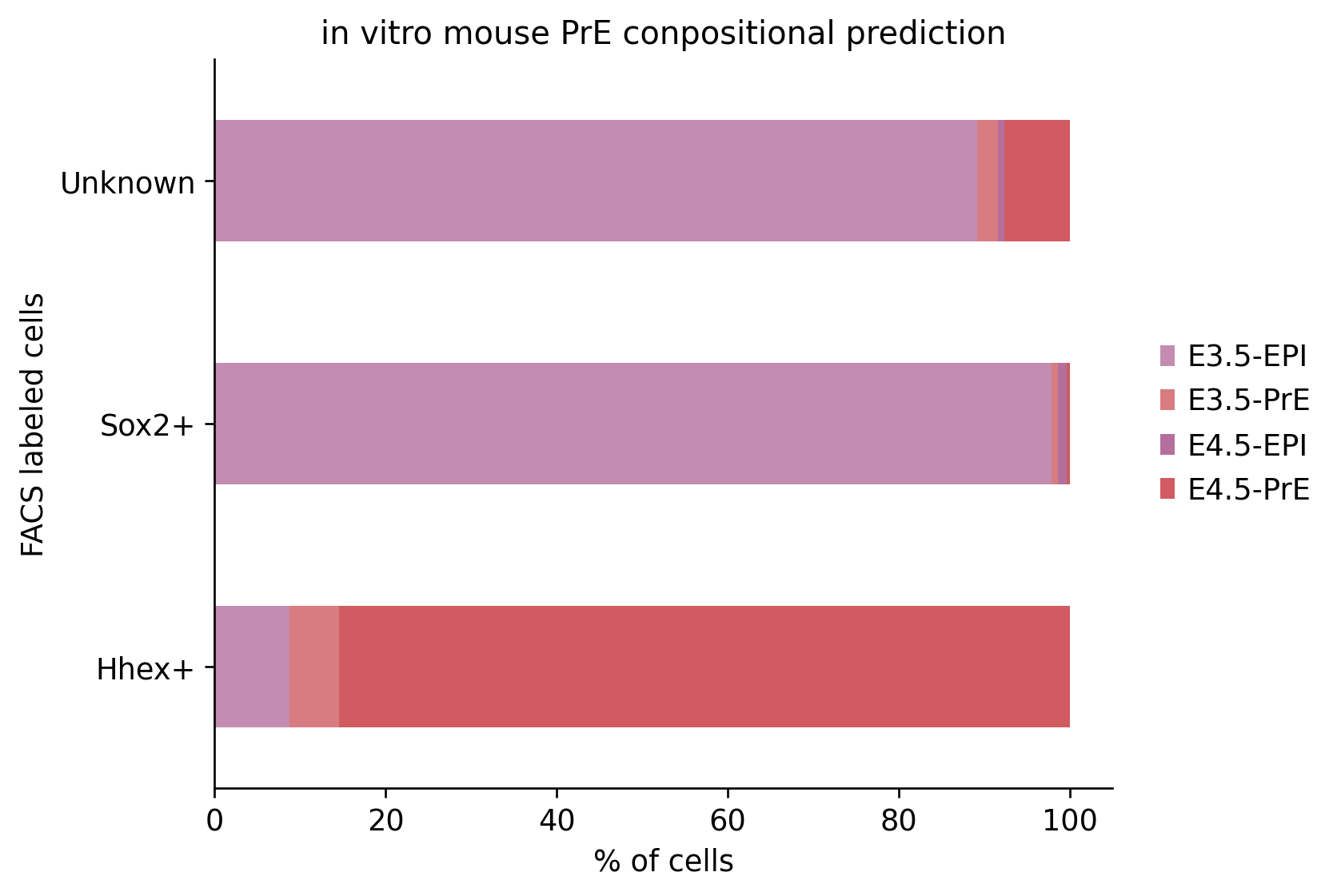

conf_mat = (sc.metrics.confusion_matrix('FACS', 'predictions', vitro.obs) * 100)
conf_mat.plot.barh(stacked=True, color=ct_colors)
plt.legend(conf_mat.columns.str.replace('_', ' '), loc='center right', bbox_to_anchor=(1.25, 0.5), frameon=False)
plt.gca().spines[['right', 'top']].set_visible(False)
plt.xlabel('% of cells')
plt.ylabel('FACS labeled cells')
plt.title('in vitro mouse PrE conpositional prediction')

plt.savefig("../figures/mouse/00_query_facs_predictions.svg")
sc.metrics.confusion_matrix('FACS', 'predictions', vitro.obs, normalize=False).to_csv("../results/00_mouse_query.csv")
