05 - mouse classifier

Author

Martin Proks

Published

August 9, 2024

In this notebook we construct multiple classifier which will try to predict cell type (ct):

SCANVI
XGBoost
- scVI embedding space
- scANVI embedding space

!which pip

/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/bin/pip

%matplotlib inline

import scvi
import scgen
import pandas as pd
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt

from typing import Tuple

from numba.core.errors import NumbaDeprecationWarning, NumbaPendingDeprecationWarning
import warnings

warnings.simplefilter('ignore', category=NumbaDeprecationWarning)
warnings.simplefilter('ignore', category=NumbaPendingDeprecationWarning)
warnings.simplefilter('ignore', category=FutureWarning)
warnings.simplefilter('ignore', category=UserWarning)

scvi.settings.seed = 0

import os
os.environ['CUDA_VISIBLE_DEVICES'] = '1,2'

/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/lib/python3.10/site-packages/scvi/_settings.py:63: UserWarning: Since v1.0.0, scvi-tools no longer uses a random seed by default. Run `scvi.settings.seed = 0` to reproduce results from previous versions.
  self.seed = seed
/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/lib/python3.10/site-packages/scvi/_settings.py:70: UserWarning: Setting `dl_pin_memory_gpu_training` is deprecated in v1.0 and will be removed in v1.1. Please pass in `pin_memory` to the data loaders instead.
  self.dl_pin_memory_gpu_training = (
/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm
[rank: 0] Global seed set to 0

%run ../scripts/helpers.py

from sklearn.metrics import accuracy_score, balanced_accuracy_score, f1_score


def prediction_stats(label: str, model, y_test, y_pred, X, Y):

    stats = [
        label,
        accuracy_score(y_test, y_pred),
        balanced_accuracy_score(y_test, y_pred),
        f1_score(y_test, y_pred, average="micro"),
        f1_score(y_test, y_pred, average="macro"),
        np.nan
    ]

    if model is None:
        return stats

    # Cross Validation
    kfold = StratifiedKFold(n_splits=10, shuffle=True, random_state=42)
    scores = cross_val_score(model, X, Y, cv = kfold, n_jobs = 8)
    stats[-1] = scores.mean()

    return stats


stats = []

1 1. scANVI

lvae = scvi.model.SCANVI.load("../results/02_mouse_integration/scanvi/")

INFO     File ../results/02_mouse_integration/scanvi/model.pt already downloaded

y_test = lvae.adata.obs.ct.values
y_pred = lvae.predict(lvae.adata)

stats.append(prediction_stats("scANVI", None, y_test, y_pred, None, None))

2 2. scANVI (`n_samples_per_label=15`)

vae = scvi.model.SCVI.load("../results/02_mouse_integration/scvi/")
lvae = scvi.model.SCANVI.from_scvi_model(vae, labels_key="ct", unlabeled_category="Unknown")
lvae.train(max_epochs=20, n_samples_per_label=15)
lvae.save("../results/02_mouse_integration/scanvi_ns_15/", overwrite=True, save_anndata=True)

INFO     File ../results/02_mouse_integration/scvi/model.pt already downloaded
INFO     Training for 20 epochs.
Epoch 20/20: 100%|███████████████████████████| 20/20 [00:06<00:00,  3.11it/s, v_num=1, train_loss_step=5.75e+3, train_loss_epoch=5.12e+3]Epoch 20/20: 100%|███████████████████████████| 20/20 [00:06<00:00,  3.15it/s, v_num=1, train_loss_step=5.75e+3, train_loss_epoch=5.12e+3]

GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
HPU available: False, using: 0 HPUs
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [1,2]
`Trainer.fit` stopped: `max_epochs=20` reached.

y_test = lvae.adata.obs.ct.values
y_pred = lvae.predict()

stats.append(prediction_stats("scANVI_ns15", None, y_test, y_pred, None, None))

3 3. XGBoost

3.1 3.1. scVI

vae = scvi.model.SCVI.load("../results/02_mouse_integration/scvi/")

INFO     File ../results/02_mouse_integration/scvi/model.pt already downloaded

vae_df = pd.DataFrame(vae.get_normalized_expression(return_mean=True))
vae_df['target'] = vae.adata.obs.ct
vae_df.head()

	sox17	ppp1r42	arfgef1	prdm14	xkr9	msc	ube2w	gm7654	tmem70	ly96	...	stn1	gsto1	1700054a03rik	gm50273	habp2	ccdc186	afap1l2	pnlip	pnliprp2	target
SRX259148	9.244410e-09	1.495744e-07	0.000106	0.000002	0.000030	2.020811e-04	0.000375	1.544236e-09	0.000513	0.000280	...	0.000278	0.004330	7.987154e-08	3.248621e-10	5.573803e-09	0.000101	5.110550e-08	1.434869e-09	4.117884e-05	16C
SRX259191	2.290104e-07	2.459044e-09	0.000065	0.000006	0.000080	4.674523e-05	0.000086	4.516714e-07	0.000462	0.000328	...	0.000394	0.001819	6.749668e-11	1.539256e-09	6.671179e-09	0.000118	2.692376e-07	8.009134e-07	9.071199e-05	8C
SRX259121	9.530742e-11	1.176371e-06	0.000106	0.000005	0.000014	4.688524e-04	0.000103	7.302969e-12	0.000299	0.000452	...	0.000032	0.001475	1.854037e-07	1.135729e-09	1.288587e-10	0.000048	1.281698e-08	7.423926e-10	6.965978e-06	16C
SRX259140	2.935074e-08	1.263999e-08	0.000069	0.000011	0.000058	8.229597e-05	0.000256	1.905268e-08	0.000314	0.000802	...	0.000497	0.003291	1.695690e-09	4.987342e-10	1.461652e-08	0.000127	1.668044e-07	5.001769e-08	9.694348e-05	16C
SRX259161	4.501800e-08	3.915447e-09	0.000240	0.000057	0.000007	3.080844e-07	0.000202	1.228954e-06	0.000794	0.000154	...	0.000211	0.000063	4.561012e-12	9.231247e-08	3.405940e-10	0.000431	3.755741e-05	2.560960e-06	7.125635e-07	4C

5 rows × 3001 columns

X_train, y_train, X_test, y_test = train_test_split_by_group(vae_df)

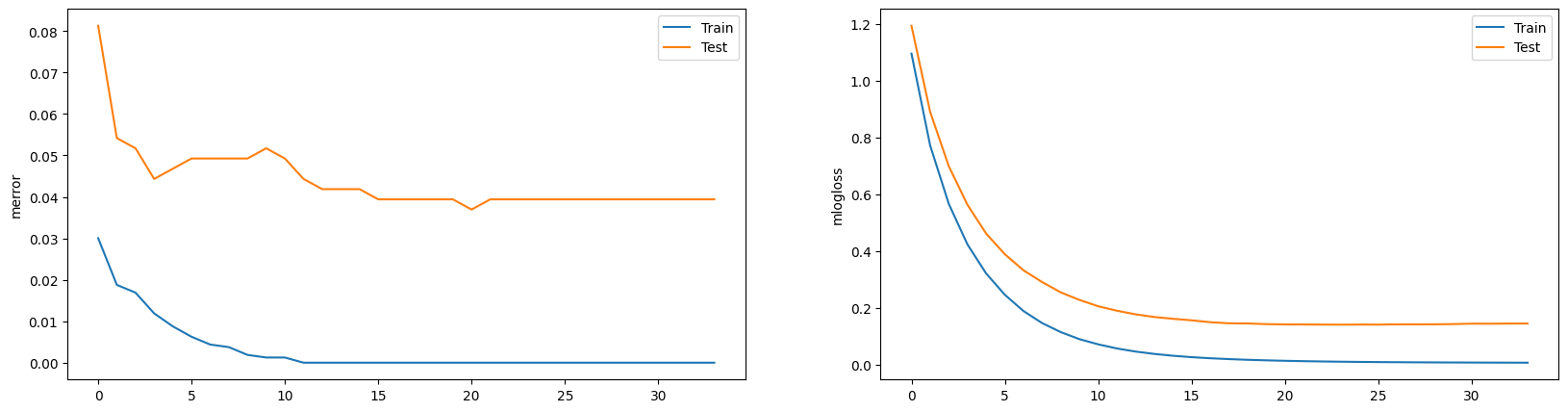

vae_xgboost = train_xgboost(vae_df, X_train, y_train, X_test, y_test)

[0] validation_0-merror:0.03004 validation_0-mlogloss:1.09462   validation_1-merror:0.08128 validation_1-mlogloss:1.19250
[1] validation_0-merror:0.01877 validation_0-mlogloss:0.77131   validation_1-merror:0.05419 validation_1-mlogloss:0.88954
[2] validation_0-merror:0.01690 validation_0-mlogloss:0.56525   validation_1-merror:0.05172 validation_1-mlogloss:0.69790
[3] validation_0-merror:0.01189 validation_0-mlogloss:0.42255   validation_1-merror:0.04433 validation_1-mlogloss:0.56222
[4] validation_0-merror:0.00876 validation_0-mlogloss:0.32044   validation_1-merror:0.04680 validation_1-mlogloss:0.46083
[5] validation_0-merror:0.00626 validation_0-mlogloss:0.24549   validation_1-merror:0.04926 validation_1-mlogloss:0.38825
[6] validation_0-merror:0.00438 validation_0-mlogloss:0.18819   validation_1-merror:0.04926 validation_1-mlogloss:0.33157
[7] validation_0-merror:0.00375 validation_0-mlogloss:0.14573   validation_1-merror:0.04926 validation_1-mlogloss:0.29007
[8] validation_0-merror:0.00188 validation_0-mlogloss:0.11385   validation_1-merror:0.04926 validation_1-mlogloss:0.25384
[9] validation_0-merror:0.00125 validation_0-mlogloss:0.08912   validation_1-merror:0.05172 validation_1-mlogloss:0.22724
[10]    validation_0-merror:0.00125 validation_0-mlogloss:0.07097   validation_1-merror:0.04926 validation_1-mlogloss:0.20505
[11]    validation_0-merror:0.00000 validation_0-mlogloss:0.05642   validation_1-merror:0.04433 validation_1-mlogloss:0.18941
[12]    validation_0-merror:0.00000 validation_0-mlogloss:0.04556   validation_1-merror:0.04187 validation_1-mlogloss:0.17663
[13]    validation_0-merror:0.00000 validation_0-mlogloss:0.03727   validation_1-merror:0.04187 validation_1-mlogloss:0.16720
[14]    validation_0-merror:0.00000 validation_0-mlogloss:0.03082   validation_1-merror:0.04187 validation_1-mlogloss:0.16092
[15]    validation_0-merror:0.00000 validation_0-mlogloss:0.02581   validation_1-merror:0.03941 validation_1-mlogloss:0.15553
[16]    validation_0-merror:0.00000 validation_0-mlogloss:0.02199   validation_1-merror:0.03941 validation_1-mlogloss:0.14887
[17]    validation_0-merror:0.00000 validation_0-mlogloss:0.01899   validation_1-merror:0.03941 validation_1-mlogloss:0.14508
[18]    validation_0-merror:0.00000 validation_0-mlogloss:0.01656   validation_1-merror:0.03941 validation_1-mlogloss:0.14449
[19]    validation_0-merror:0.00000 validation_0-mlogloss:0.01463   validation_1-merror:0.03941 validation_1-mlogloss:0.14215
[20]    validation_0-merror:0.00000 validation_0-mlogloss:0.01305   validation_1-merror:0.03695 validation_1-mlogloss:0.14105
[21]    validation_0-merror:0.00000 validation_0-mlogloss:0.01174   validation_1-merror:0.03941 validation_1-mlogloss:0.14084
[22]    validation_0-merror:0.00000 validation_0-mlogloss:0.01067   validation_1-merror:0.03941 validation_1-mlogloss:0.14050
[23]    validation_0-merror:0.00000 validation_0-mlogloss:0.00981   validation_1-merror:0.03941 validation_1-mlogloss:0.14013
[24]    validation_0-merror:0.00000 validation_0-mlogloss:0.00909   validation_1-merror:0.03941 validation_1-mlogloss:0.14064
[25]    validation_0-merror:0.00000 validation_0-mlogloss:0.00851   validation_1-merror:0.03941 validation_1-mlogloss:0.14045
[26]    validation_0-merror:0.00000 validation_0-mlogloss:0.00804   validation_1-merror:0.03941 validation_1-mlogloss:0.14129
[27]    validation_0-merror:0.00000 validation_0-mlogloss:0.00768   validation_1-merror:0.03941 validation_1-mlogloss:0.14126
[28]    validation_0-merror:0.00000 validation_0-mlogloss:0.00735   validation_1-merror:0.03941 validation_1-mlogloss:0.14149
[29]    validation_0-merror:0.00000 validation_0-mlogloss:0.00707   validation_1-merror:0.03941 validation_1-mlogloss:0.14218
[30]    validation_0-merror:0.00000 validation_0-mlogloss:0.00686   validation_1-merror:0.03941 validation_1-mlogloss:0.14375
[31]    validation_0-merror:0.00000 validation_0-mlogloss:0.00665   validation_1-merror:0.03941 validation_1-mlogloss:0.14360
[32]    validation_0-merror:0.00000 validation_0-mlogloss:0.00648   validation_1-merror:0.03941 validation_1-mlogloss:0.14413

y_pred = vae_xgboost.predict(X_test)

stats.append(prediction_stats("XGB_scVI", vae_xgboost, y_test, y_pred, vae_df.values[:, :-1], vae_df['target'].cat.codes.to_numpy()))

vae_xgboost.save_model("../results/02_mouse_integration/05_scVI_xgboost.json")

3.2 3.2. scANVI

lvae = scvi.model.SCANVI.load("../results/02_mouse_integration/scanvi/")

INFO     File ../results/02_mouse_integration/scanvi/model.pt already downloaded

lvae_df = pd.DataFrame(lvae.get_normalized_expression(return_mean=True))
lvae_df['target'] = lvae.adata.obs.ct
lvae_df.head()

	sox17	ppp1r42	arfgef1	prdm14	xkr9	msc	ube2w	gm7654	tmem70	ly96	...	stn1	gsto1	1700054a03rik	gm50273	habp2	ccdc186	afap1l2	pnlip	pnliprp2	target
SRX259148	1.499321e-08	7.591232e-08	0.000068	0.000003	0.000065	0.000326	0.000131	1.483101e-08	0.000298	0.000150	...	0.000185	0.005562	8.425851e-07	4.370481e-09	1.569241e-09	0.000072	4.824862e-08	1.690867e-09	0.000051	16C
SRX259191	1.535953e-07	3.323944e-08	0.000084	0.000012	0.000095	0.000061	0.000062	1.126642e-06	0.000531	0.000390	...	0.000336	0.002567	1.206273e-08	3.697671e-08	8.405232e-09	0.000134	1.122398e-06	5.098362e-07	0.000258	8C
SRX259121	2.234061e-10	1.818486e-07	0.000059	0.000002	0.000023	0.000644	0.000123	3.998329e-11	0.000119	0.000196	...	0.000069	0.001645	4.700184e-07	2.258681e-09	1.102188e-10	0.000037	5.974784e-09	1.568855e-09	0.000009	16C
SRX259140	8.150251e-08	4.920110e-08	0.000055	0.000010	0.000060	0.000158	0.000128	1.852338e-07	0.000286	0.000275	...	0.000263	0.004427	1.616031e-07	1.186041e-08	5.657514e-09	0.000073	3.052841e-07	3.905111e-08	0.000125	16C
SRX259161	2.039545e-07	1.044988e-07	0.000329	0.000031	0.000166	0.000001	0.000171	3.242764e-05	0.000807	0.000285	...	0.000279	0.000124	4.134634e-10	1.175266e-07	7.103967e-09	0.000540	9.310104e-05	2.019131e-06	0.000002	4C

5 rows × 3001 columns

X_train, y_train, X_test, y_test = train_test_split_by_group(lvae_df)

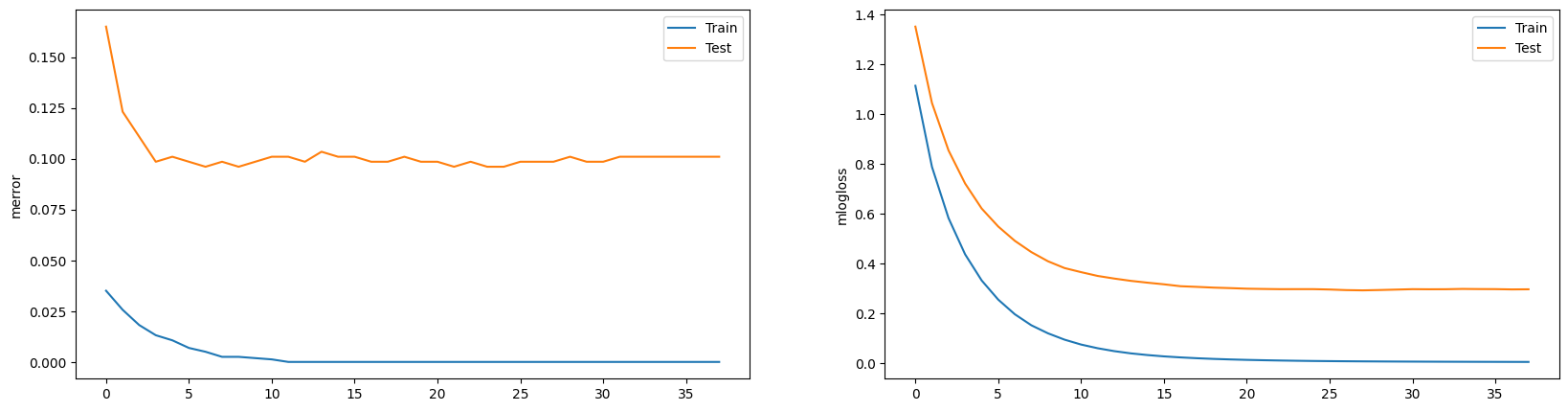

lvae_xgboost = train_xgboost(lvae_df, X_train, y_train, X_test, y_test)

[0] validation_0-merror:0.03504 validation_0-mlogloss:1.11435   validation_1-merror:0.16502 validation_1-mlogloss:1.35171
[1] validation_0-merror:0.02566 validation_0-mlogloss:0.78891   validation_1-merror:0.12315 validation_1-mlogloss:1.04526
[2] validation_0-merror:0.01815 validation_0-mlogloss:0.58309   validation_1-merror:0.11084 validation_1-mlogloss:0.85486
[3] validation_0-merror:0.01314 validation_0-mlogloss:0.43796   validation_1-merror:0.09852 validation_1-mlogloss:0.72215
[4] validation_0-merror:0.01064 validation_0-mlogloss:0.33298   validation_1-merror:0.10099 validation_1-mlogloss:0.62165
[5] validation_0-merror:0.00688 validation_0-mlogloss:0.25603   validation_1-merror:0.09852 validation_1-mlogloss:0.54944
[6] validation_0-merror:0.00501 validation_0-mlogloss:0.19739   validation_1-merror:0.09606 validation_1-mlogloss:0.49209
[7] validation_0-merror:0.00250 validation_0-mlogloss:0.15305   validation_1-merror:0.09852 validation_1-mlogloss:0.44675
[8] validation_0-merror:0.00250 validation_0-mlogloss:0.12090   validation_1-merror:0.09606 validation_1-mlogloss:0.41005
[9] validation_0-merror:0.00188 validation_0-mlogloss:0.09542   validation_1-merror:0.09852 validation_1-mlogloss:0.38280
[10]    validation_0-merror:0.00125 validation_0-mlogloss:0.07578   validation_1-merror:0.10099 validation_1-mlogloss:0.36633
[11]    validation_0-merror:0.00000 validation_0-mlogloss:0.06099   validation_1-merror:0.10099 validation_1-mlogloss:0.35114
[12]    validation_0-merror:0.00000 validation_0-mlogloss:0.04939   validation_1-merror:0.09852 validation_1-mlogloss:0.34063
[13]    validation_0-merror:0.00000 validation_0-mlogloss:0.04041   validation_1-merror:0.10345 validation_1-mlogloss:0.33141
[14]    validation_0-merror:0.00000 validation_0-mlogloss:0.03370   validation_1-merror:0.10099 validation_1-mlogloss:0.32415
[15]    validation_0-merror:0.00000 validation_0-mlogloss:0.02832   validation_1-merror:0.10099 validation_1-mlogloss:0.31757
[16]    validation_0-merror:0.00000 validation_0-mlogloss:0.02422   validation_1-merror:0.09852 validation_1-mlogloss:0.30989
[17]    validation_0-merror:0.00000 validation_0-mlogloss:0.02089   validation_1-merror:0.09852 validation_1-mlogloss:0.30725
[18]    validation_0-merror:0.00000 validation_0-mlogloss:0.01818   validation_1-merror:0.10099 validation_1-mlogloss:0.30426
[19]    validation_0-merror:0.00000 validation_0-mlogloss:0.01608   validation_1-merror:0.09852 validation_1-mlogloss:0.30231
[20]    validation_0-merror:0.00000 validation_0-mlogloss:0.01431   validation_1-merror:0.09852 validation_1-mlogloss:0.29995
[21]    validation_0-merror:0.00000 validation_0-mlogloss:0.01292   validation_1-merror:0.09606 validation_1-mlogloss:0.29890
[22]    validation_0-merror:0.00000 validation_0-mlogloss:0.01174   validation_1-merror:0.09852 validation_1-mlogloss:0.29805
[23]    validation_0-merror:0.00000 validation_0-mlogloss:0.01074   validation_1-merror:0.09606 validation_1-mlogloss:0.29816
[24]    validation_0-merror:0.00000 validation_0-mlogloss:0.00989   validation_1-merror:0.09606 validation_1-mlogloss:0.29815
[25]    validation_0-merror:0.00000 validation_0-mlogloss:0.00927   validation_1-merror:0.09852 validation_1-mlogloss:0.29669
[26]    validation_0-merror:0.00000 validation_0-mlogloss:0.00875   validation_1-merror:0.09852 validation_1-mlogloss:0.29431
[27]    validation_0-merror:0.00000 validation_0-mlogloss:0.00831   validation_1-merror:0.09852 validation_1-mlogloss:0.29328
[28]    validation_0-merror:0.00000 validation_0-mlogloss:0.00794   validation_1-merror:0.10099 validation_1-mlogloss:0.29464
[29]    validation_0-merror:0.00000 validation_0-mlogloss:0.00760   validation_1-merror:0.09852 validation_1-mlogloss:0.29632
[30]    validation_0-merror:0.00000 validation_0-mlogloss:0.00732   validation_1-merror:0.09852 validation_1-mlogloss:0.29805
[31]    validation_0-merror:0.00000 validation_0-mlogloss:0.00708   validation_1-merror:0.10099 validation_1-mlogloss:0.29762
[32]    validation_0-merror:0.00000 validation_0-mlogloss:0.00684   validation_1-merror:0.10099 validation_1-mlogloss:0.29781
[33]    validation_0-merror:0.00000 validation_0-mlogloss:0.00666   validation_1-merror:0.10099 validation_1-mlogloss:0.29910
[34]    validation_0-merror:0.00000 validation_0-mlogloss:0.00649   validation_1-merror:0.10099 validation_1-mlogloss:0.29847
[35]    validation_0-merror:0.00000 validation_0-mlogloss:0.00634   validation_1-merror:0.10099 validation_1-mlogloss:0.29821
[36]    validation_0-merror:0.00000 validation_0-mlogloss:0.00619   validation_1-merror:0.10099 validation_1-mlogloss:0.29706

y_pred = lvae_xgboost.predict(X_test)

stats.append(prediction_stats("XGB_scANVI", lvae_xgboost, y_test, y_pred, lvae_df.values[:, :-1], lvae_df['target'].cat.codes.to_numpy()))

lvae_xgboost.save_model("../results/02_mouse_integration/05_scANVI_xgboost.json")

3.3 3.3. scGEN

mscgen = scgen.SCGEN.load("../results/02_mouse_integration/scgen/")

INFO     File ../results/02_mouse_integration/scgen/model.pt already downloaded

mscgen_df = pd.DataFrame(mscgen.get_decoded_expression(),
                         index=mscgen.adata.obs_names, columns=mscgen.adata.var_names)
mscgen_df['target'] = mscgen.adata.obs['ct']
mscgen_df.head()

	sox17	ppp1r42	arfgef1	prdm14	xkr9	msc	ube2w	gm7654	tmem70	ly96	...	stn1	gsto1	1700054a03rik	gm50273	habp2	ccdc186	afap1l2	pnlip	pnliprp2	target
SRX259148	0.129524	-0.009126	0.580587	-0.027672	0.165227	0.593042	0.868470	-0.005957	1.724664	1.235015	...	1.047719	3.994854	0.026034	0.019212	-0.022841	0.752102	0.036959	0.001139	0.642708	16C
SRX259191	0.042759	-0.009889	0.608965	0.035671	0.257579	0.512698	0.708813	-0.007634	1.550365	1.364577	...	1.072520	3.394770	0.016012	0.020248	-0.048329	0.858443	0.036058	0.028643	0.485618	8C
SRX259121	-0.062429	-0.002099	0.516726	-0.141183	0.291033	0.251529	0.438559	-0.008837	1.417975	1.416850	...	0.471408	2.301015	0.038988	0.019344	0.005064	0.552338	-0.009445	-0.026622	0.361133	16C
SRX259140	-0.067408	-0.014072	0.476634	0.038267	0.143380	0.544186	0.797441	-0.009345	1.724418	1.436977	...	0.957134	3.538107	0.023010	0.025978	-0.022783	0.754117	0.064578	0.004726	0.577420	16C
SRX259161	0.009253	0.033485	1.305035	0.533173	-0.025159	0.184909	1.239522	0.022633	2.215558	1.189655	...	1.302740	1.088298	0.003135	0.037767	0.004102	1.716617	0.146538	0.081518	0.166842	4C

5 rows × 3001 columns

X_train, y_train, X_test, y_test = train_test_split_by_group(mscgen_df)

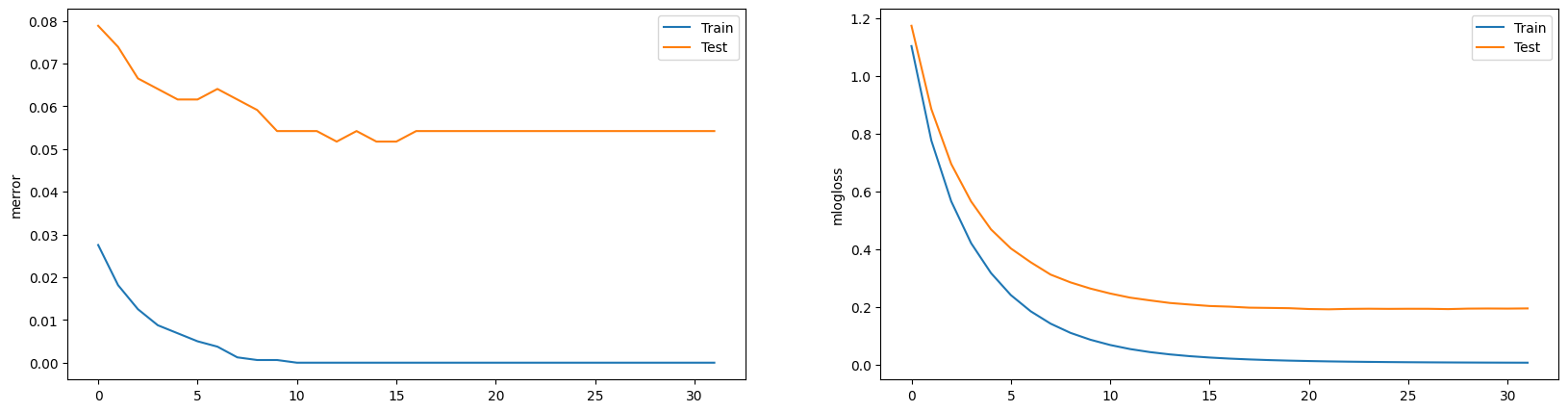

mscgen_xgboost = train_xgboost(mscgen_df, X_train, y_train, X_test, y_test)

[0] validation_0-merror:0.02753 validation_0-mlogloss:1.10220   validation_1-merror:0.07882 validation_1-mlogloss:1.17242
[1] validation_0-merror:0.01815 validation_0-mlogloss:0.77531   validation_1-merror:0.07389 validation_1-mlogloss:0.88407
[2] validation_0-merror:0.01252 validation_0-mlogloss:0.56490   validation_1-merror:0.06650 validation_1-mlogloss:0.69409
[3] validation_0-merror:0.00876 validation_0-mlogloss:0.42008   validation_1-merror:0.06404 validation_1-mlogloss:0.56456
[4] validation_0-merror:0.00688 validation_0-mlogloss:0.31672   validation_1-merror:0.06158 validation_1-mlogloss:0.46782
[5] validation_0-merror:0.00501 validation_0-mlogloss:0.24033   validation_1-merror:0.06158 validation_1-mlogloss:0.40182
[6] validation_0-merror:0.00375 validation_0-mlogloss:0.18417   validation_1-merror:0.06404 validation_1-mlogloss:0.35392
[7] validation_0-merror:0.00125 validation_0-mlogloss:0.14143   validation_1-merror:0.06158 validation_1-mlogloss:0.31127
[8] validation_0-merror:0.00063 validation_0-mlogloss:0.10950   validation_1-merror:0.05911 validation_1-mlogloss:0.28430
[9] validation_0-merror:0.00063 validation_0-mlogloss:0.08584   validation_1-merror:0.05419 validation_1-mlogloss:0.26294
[10]    validation_0-merror:0.00000 validation_0-mlogloss:0.06750   validation_1-merror:0.05419 validation_1-mlogloss:0.24574
[11]    validation_0-merror:0.00000 validation_0-mlogloss:0.05349   validation_1-merror:0.05419 validation_1-mlogloss:0.23149
[12]    validation_0-merror:0.00000 validation_0-mlogloss:0.04296   validation_1-merror:0.05172 validation_1-mlogloss:0.22194
[13]    validation_0-merror:0.00000 validation_0-mlogloss:0.03500   validation_1-merror:0.05419 validation_1-mlogloss:0.21303
[14]    validation_0-merror:0.00000 validation_0-mlogloss:0.02891   validation_1-merror:0.05172 validation_1-mlogloss:0.20760
[15]    validation_0-merror:0.00000 validation_0-mlogloss:0.02419   validation_1-merror:0.05172 validation_1-mlogloss:0.20254
[16]    validation_0-merror:0.00000 validation_0-mlogloss:0.02050   validation_1-merror:0.05419 validation_1-mlogloss:0.20035
[17]    validation_0-merror:0.00000 validation_0-mlogloss:0.01761   validation_1-merror:0.05419 validation_1-mlogloss:0.19680
[18]    validation_0-merror:0.00000 validation_0-mlogloss:0.01529   validation_1-merror:0.05419 validation_1-mlogloss:0.19592
[19]    validation_0-merror:0.00000 validation_0-mlogloss:0.01347   validation_1-merror:0.05419 validation_1-mlogloss:0.19497
[20]    validation_0-merror:0.00000 validation_0-mlogloss:0.01202   validation_1-merror:0.05419 validation_1-mlogloss:0.19207
[21]    validation_0-merror:0.00000 validation_0-mlogloss:0.01080   validation_1-merror:0.05419 validation_1-mlogloss:0.19109
[22]    validation_0-merror:0.00000 validation_0-mlogloss:0.00985   validation_1-merror:0.05419 validation_1-mlogloss:0.19257
[23]    validation_0-merror:0.00000 validation_0-mlogloss:0.00908   validation_1-merror:0.05419 validation_1-mlogloss:0.19313
[24]    validation_0-merror:0.00000 validation_0-mlogloss:0.00847   validation_1-merror:0.05419 validation_1-mlogloss:0.19265
[25]    validation_0-merror:0.00000 validation_0-mlogloss:0.00794   validation_1-merror:0.05419 validation_1-mlogloss:0.19297
[26]    validation_0-merror:0.00000 validation_0-mlogloss:0.00753   validation_1-merror:0.05419 validation_1-mlogloss:0.19289
[27]    validation_0-merror:0.00000 validation_0-mlogloss:0.00718   validation_1-merror:0.05419 validation_1-mlogloss:0.19182
[28]    validation_0-merror:0.00000 validation_0-mlogloss:0.00689   validation_1-merror:0.05419 validation_1-mlogloss:0.19347
[29]    validation_0-merror:0.00000 validation_0-mlogloss:0.00664   validation_1-merror:0.05419 validation_1-mlogloss:0.19384
[30]    validation_0-merror:0.00000 validation_0-mlogloss:0.00646   validation_1-merror:0.05419 validation_1-mlogloss:0.19353

stats.append(prediction_stats("XGB_scGEN", mscgen_xgboost, y_test, y_pred, mscgen_df.values[:, :-1], mscgen_df['target'].cat.codes.to_numpy()))

mscgen_xgboost.save_model("../results/02_mouse_integration/05_scGEN_xgboost.json")

4 4. Summary

stats_df = pd.DataFrame(stats, columns=['method', 'accuracy', 'balanced_accuracy', 'f1_micro', 'f1_macro', 'cv_accuracy']).set_index('method')
stats_df.to_csv("../results/05_mouse_classifier_stats.csv")

stats_df

	accuracy	balanced_accuracy	f1_micro	f1_macro	cv_accuracy
method
scANVI	0.830339	0.649818	0.830339	0.634290	NaN
scANVI_ns15	0.793413	0.879503	0.793413	0.777624	NaN
XGB_scVI	0.960591	0.963041	0.960591	0.967656	0.935637
XGB_scANVI	0.901478	0.917235	0.901478	0.923392	0.920664
XGB_scGEN	0.901478	0.917235	0.901478	0.923392	0.942602

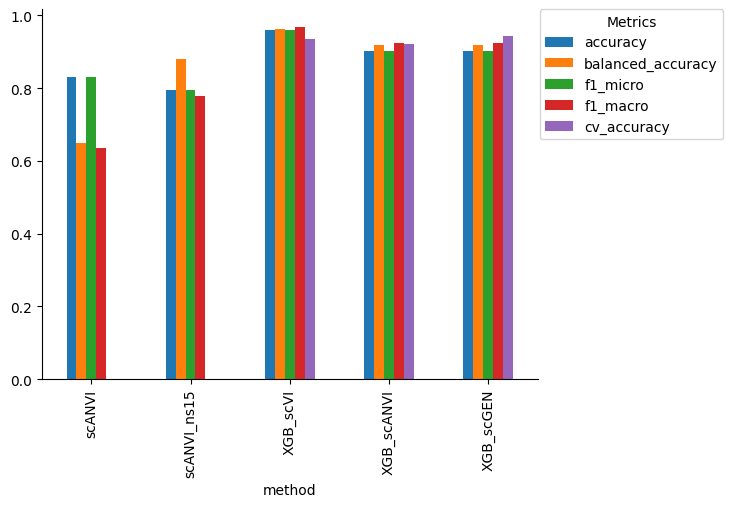

stats_df.plot(kind='bar')
plt.gca().spines[['right', 'top']].set_visible(False)
plt.gca().legend(title='Metrics', bbox_to_anchor=(0.99, 1.02), loc='upper left')

<matplotlib.legend.Legend at 0x7f01bfb91390>

1 1. scANVI

2 2. scANVI (n_samples_per_label=15)

3 3. XGBoost

3.1 3.1. scVI

3.2 3.2. scANVI

3.3 3.3. scGEN

4 4. Summary

2 2. scANVI (`n_samples_per_label=15`)
