03 - human analysis

!which pip

/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/bin/pip

%matplotlib inline

import numpy as np
import pandas as pd
import seaborn as sns

import scvi
import scanpy as sc
import scanpy.external as sce
import scFates as scf
import matplotlib.pyplot as plt

import warnings
from numba.core.errors import NumbaDeprecationWarning
warnings.simplefilter('ignore', category=NumbaDeprecationWarning)
warnings.simplefilter('ignore', category=FutureWarning)
warnings.simplefilter('ignore', category=UserWarning)

/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/lib/python3.10/site-packages/scvi/_settings.py:63: UserWarning: Since v1.0.0, scvi-tools no longer uses a random seed by default. Run `scvi.settings.seed = 0` to reproduce results from previous versions.
  self.seed = seed
/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/lib/python3.10/site-packages/scvi/_settings.py:70: UserWarning: Setting `dl_pin_memory_gpu_training` is deprecated in v1.0 and will be removed in v1.1. Please pass in `pin_memory` to the data loaders instead.
  self.dl_pin_memory_gpu_training = (
/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

# adata = sc.read("../results/human_integration/version_1/scvi/adata.h5ad")
adata = sc.read("../results/02_human_integration/scvi/adata.h5ad")
adata

AnnData object with n_obs × n_vars = 2323 × 3000
    obs: 'day', 'ct', 'experiment', 'technology', 'n_counts', 'n_genes', 'ct_fine', 'batch', 'stage', 'timepoint', 'ct_orig', '_scvi_batch', '_scvi_labels'
    var: 'symbol', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'highly_variable_nbatches', 'highly_variable_intersection'
    uns: '_scvi_manager_uuid', '_scvi_uuid', 'hvg'
    obsm: 'X_mde_scVI', 'X_scVI'
    layers: 'counts', 'scVI_normalized'

# adata.obs.experiment = adata.obs.experiment.str.replace('_', ' et al., ').astype('category')
# adata.obs['batch'] = adata.obs._scvi_batch

# adata.obs['stage'] = adata.obs.ct.cat.rename_categories({
#     'Epiblast': 'EPI',
#     'Inner Cell Mass': 'ICM',
#     'Primitive Endoderm': 'PrE',
#     'Trophectoderm': 'TE'
# }).cat.reorder_categories(['Oocyte', 'Pronucleus', 'Zygote', '2C', '4C', '8C', 'Morula', 'TE', 'ICM', 'EPI', 'PrE', 'Unknown'])

# adata.obs['timepoint'] = adata.obs.ct.astype(str)
# timepoint_mask = adata.obs.ct.isin(['Unknown', 'Trophectoderm', 'Inner Cell Mass', 'Primitive Endoderm', 'Epiblast'])
# adata.obs.loc[timepoint_mask, 'timepoint'] = 'E' + adata.obs.loc[timepoint_mask, 'day'].astype(str)
# adata.obs.ct = adata.obs.ct.astype('category')

# adata.obs['ct_orig'] = adata.obs.ct
# adata.obs.ct = adata.obs.ct_fine

# ENSG_to_SYMBOL = pd.read_csv('../data/external/human/Homo_sapiens.GRCh38.110.ENSG_to_SYMBOL.tsv', delimiter=" ", header=None)
# ENSG_to_SYMBOL.columns = ['ensembl','symbol']
# ENSG_to_SYMBOL_noName = pd.read_csv('../data/external/human/Homo_sapiens.GRCh38.110.ENSG_to_SYMBOL_noName.tsv', delimiter=" ", header=None)
# nameless_df = pd.DataFrame(
#     data = {
#         'ensembl' : list(set(ENSG_to_SYMBOL_noName[0].tolist()) - set(ENSG_to_SYMBOL.ensembl.tolist())),
#         'symbol' : list(set(ENSG_to_SYMBOL_noName[0].tolist()) - set(ENSG_to_SYMBOL.ensembl.tolist())),
#     })
# ENSG_to_SYMBOL = pd.concat([ENSG_to_SYMBOL, nameless_df])
# ENSG_to_SYMBOL.set_index('ensembl', inplace=True)

# adata.var['symbol'] = ENSG_to_SYMBOL.loc[adata.var_names, 'symbol']

1 1. SCVI

USE_REP = 'X_scVI'

# Ideally find 15 clusters

sc.pp.neighbors(adata, use_rep=USE_REP)
sc.tl.leiden(adata, resolution=0.8)

2023-12-05 20:08:39.657755: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Could not find TensorRT

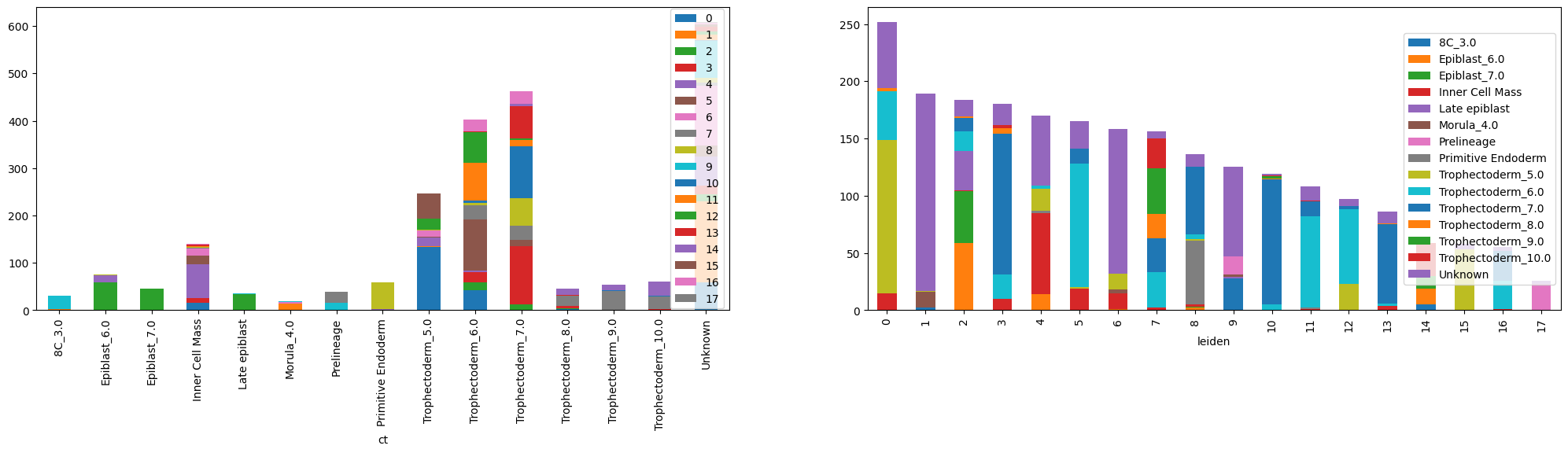

fig, ax = plt.subplots(1, 2, figsize=[25, 5])
adata.obs.groupby(['ct', 'leiden']).size().unstack().plot(kind='bar', stacked=True, ax=ax[0]).legend(loc='right')
adata.obs.groupby(['leiden', 'ct']).size().unstack().plot(kind='bar', stacked=True, ax=ax[1]).legend(loc='right')

<matplotlib.legend.Legend at 0x7fb8c7661750>

1.1 1.0. PCA

sc.tl.pca(adata)

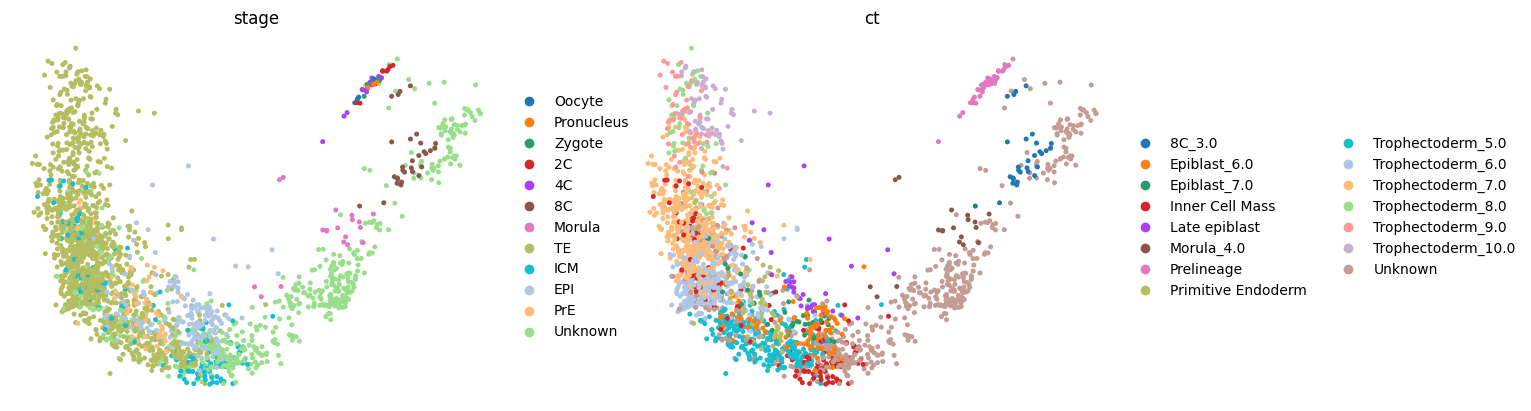

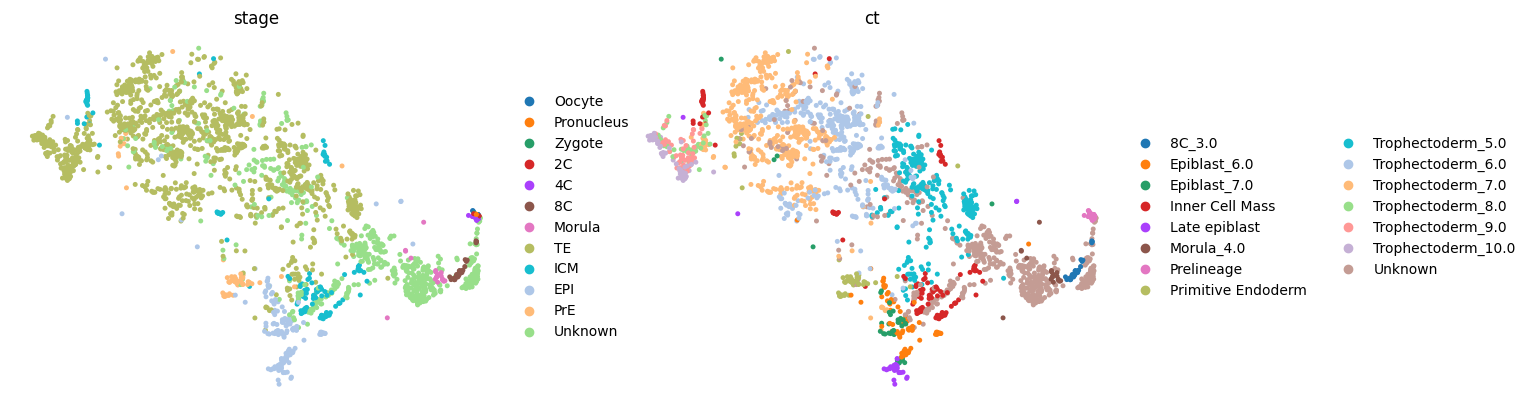

sc.pl.pca(adata, color=['stage', 'ct'], frameon=False, ncols=2)

1.2 1.1. UMAP

sc.tl.umap(adata)

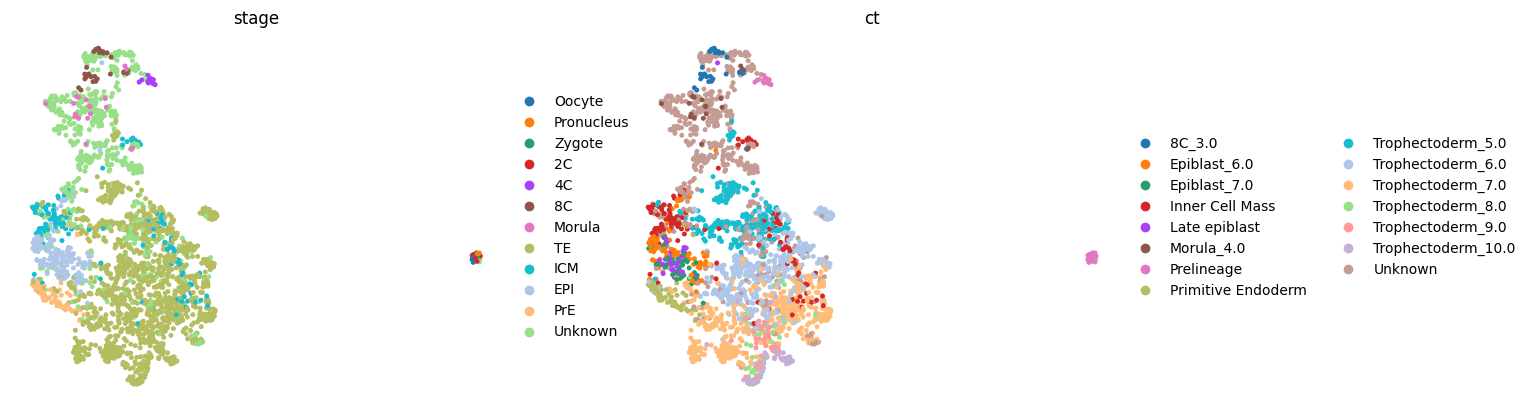

sc.pl.umap(adata, color=['stage', 'ct'], frameon=False, ncols=2)

1.3 1.2. Phate

sce.tl.phate(adata, n_jobs=8)

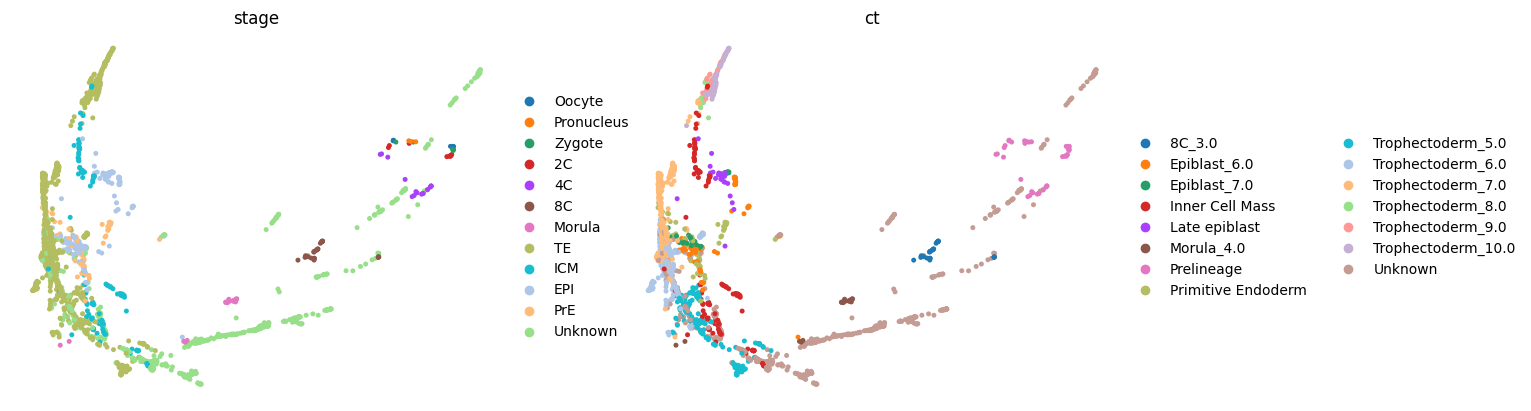

sce.pl.phate(adata, color=['stage', 'ct'], frameon=False, ncols=2)

1.4 1.3. t-SNE

sc.tl.tsne(adata, n_jobs=8, perplexity=300)
sc.pl.tsne(adata, color=['stage', 'ct'], frameon=False, ncols=2)

1.5 1.4. Force Directed Graph

sc.tl.draw_graph(adata, n_jobs=8, random_state=9)

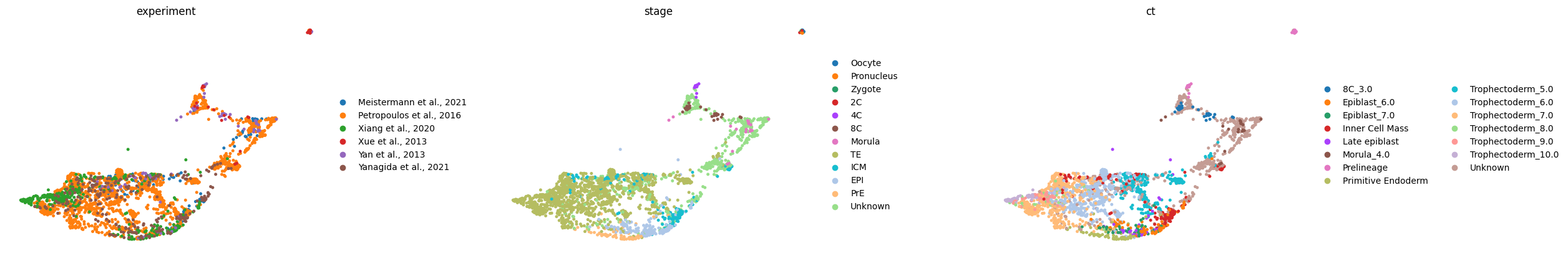

sc.pl.draw_graph(adata, color=['experiment', 'stage', 'ct'], frameon=False, ncols=3, wspace=0.4)

1.6 1.5. DC

# Bug: https://github.com/scverse/scanpy/issues/2254

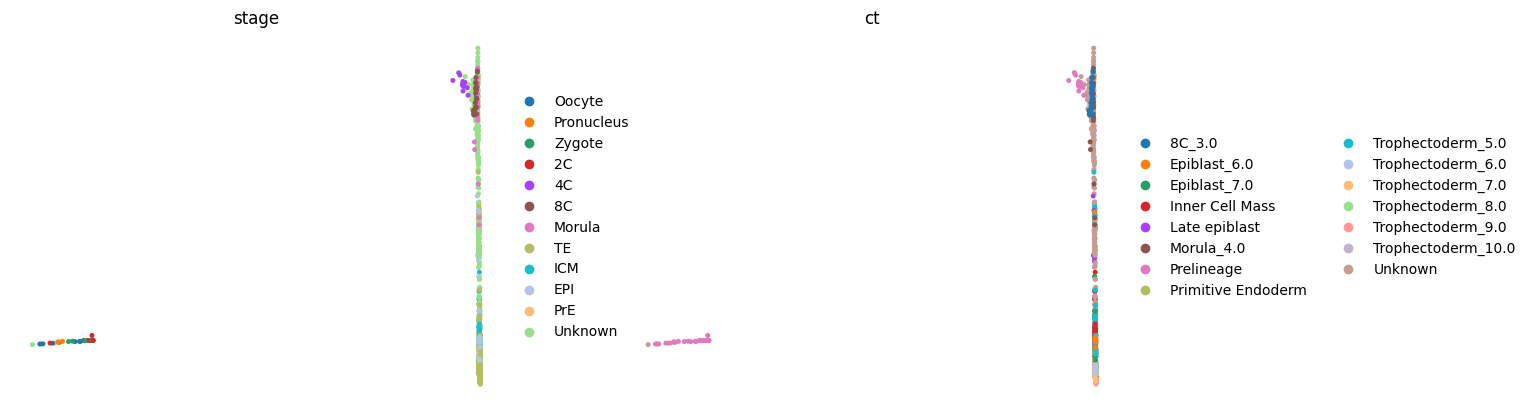

sc.tl.diffmap(adata)

adata.obsm["X_diffmap_"] = adata.obsm["X_diffmap"][:, 1:]
sc.pl.embedding(adata, "diffmap_", color=['stage', 'ct'], frameon=False, ncols=2)

2 2. Pseudotime

adata

AnnData object with n_obs × n_vars = 2323 × 3000
    obs: 'day', 'ct', 'experiment', 'technology', 'n_counts', 'n_genes', 'ct_fine', 'batch', 'stage', 'timepoint', 'ct_orig', '_scvi_batch', '_scvi_labels', 'leiden'
    var: 'symbol', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'highly_variable_nbatches', 'highly_variable_intersection'
    uns: '_scvi_manager_uuid', '_scvi_uuid', 'hvg', 'neighbors', 'leiden', 'pca', 'stage_colors', 'ct_colors', 'umap', 'tsne', 'draw_graph', 'experiment_colors', 'diffmap_evals'
    obsm: 'X_mde_scVI', 'X_scVI', 'X_pca', 'X_umap', 'X_phate', 'X_tsne', 'X_draw_graph_fa', 'X_diffmap', 'X_diffmap_'
    varm: 'PCs'
    layers: 'counts', 'scVI_normalized'
    obsp: 'distances', 'connectivities'

2.1 2.1. DPT package

sc.pp.neighbors(adata, use_rep=USE_REP)
sc.tl.diffmap(adata)

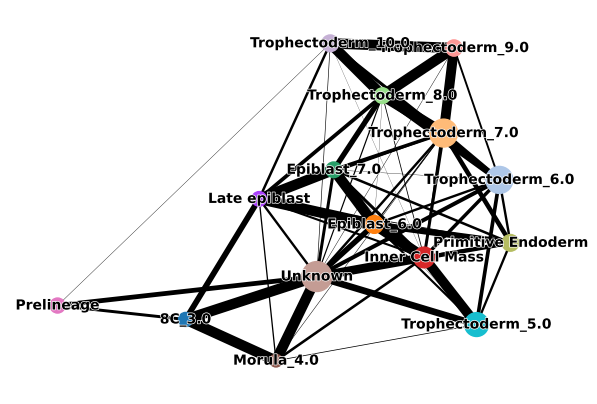

sc.tl.paga(adata, groups='ct')

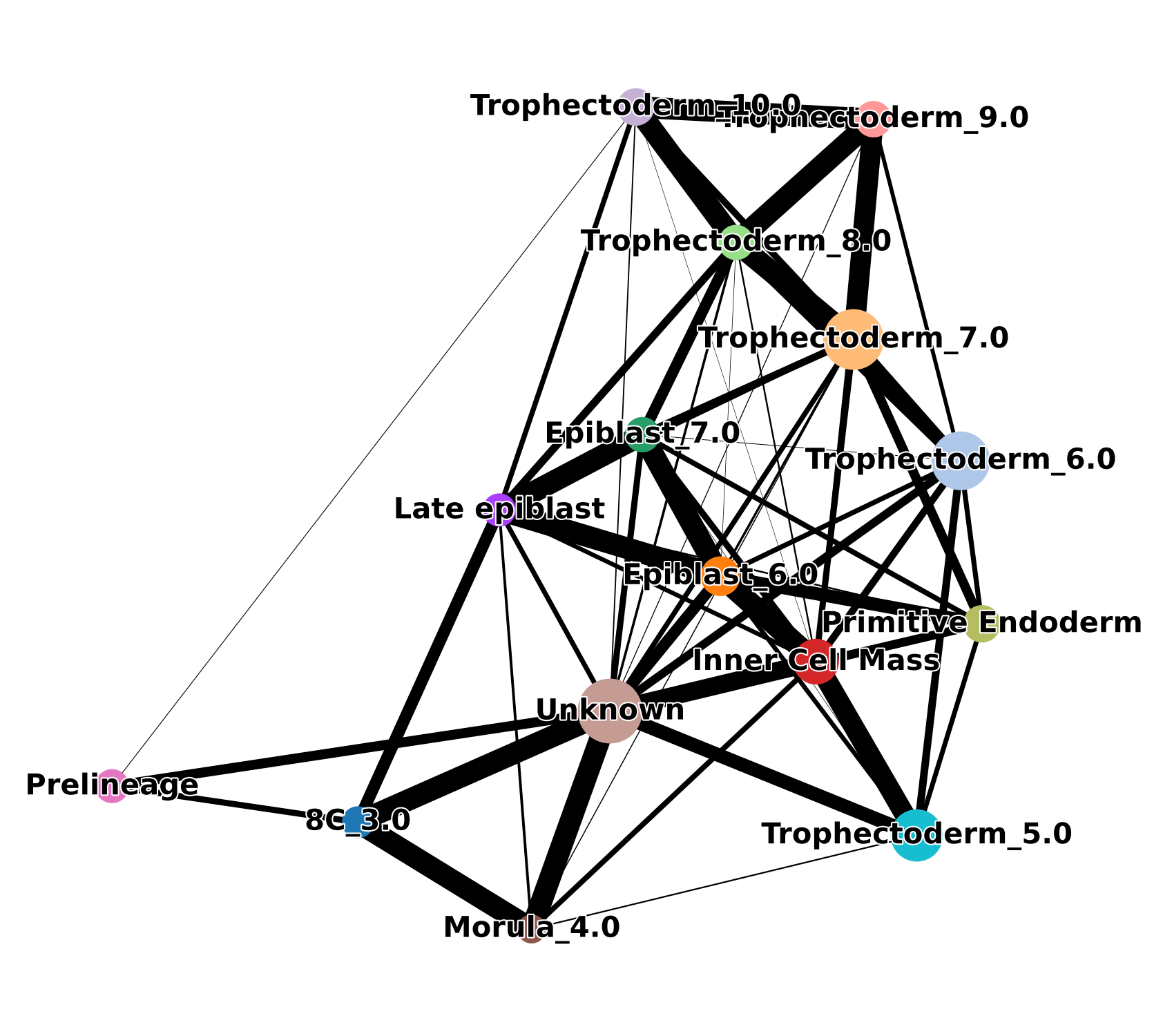

sc.pl.paga(adata, color=['ct'], frameon=False, fontoutline=True)
sc.tl.draw_graph(adata, init_pos='paga', n_jobs=10)

with plt.rc_context({"figure.figsize": (6, 6), "figure.dpi": (300)}):
    sc.pl.paga(adata, color=['ct'], frameon=False, fontoutline=True)

adata.uns['iroot'] = np.flatnonzero(adata.obs['ct']  == 'Prelineage')[0]
# adata.uns['iroot'] = np.where(adata.obs_names == 'SRX144343_SRX144343')[0][0]
sc.tl.dpt(adata)

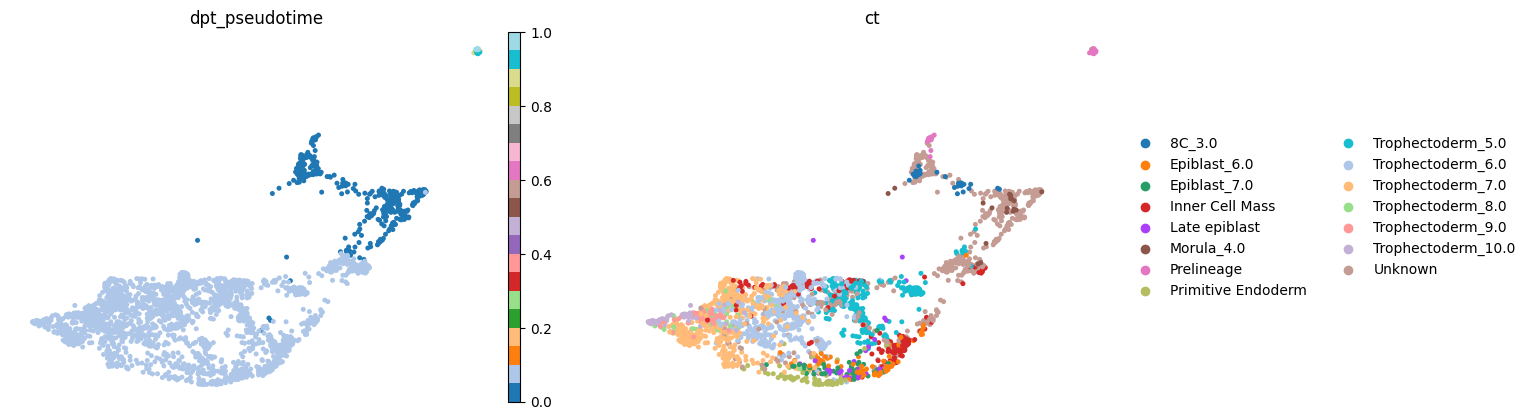

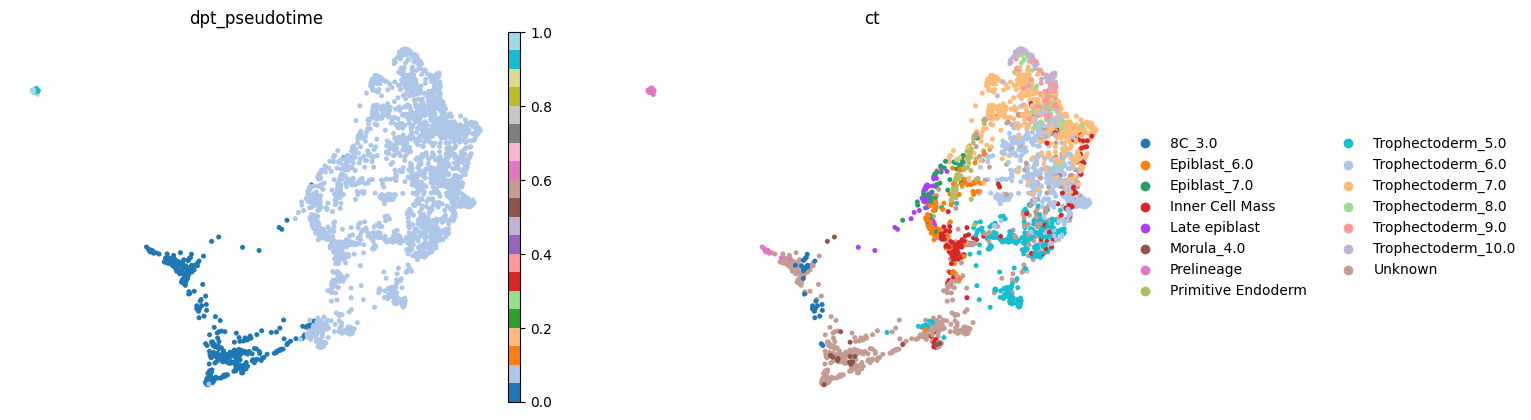

sc.pl.draw_graph(adata, color=['dpt_pseudotime', 'ct'], frameon=False, ncols=2, cmap='tab20')

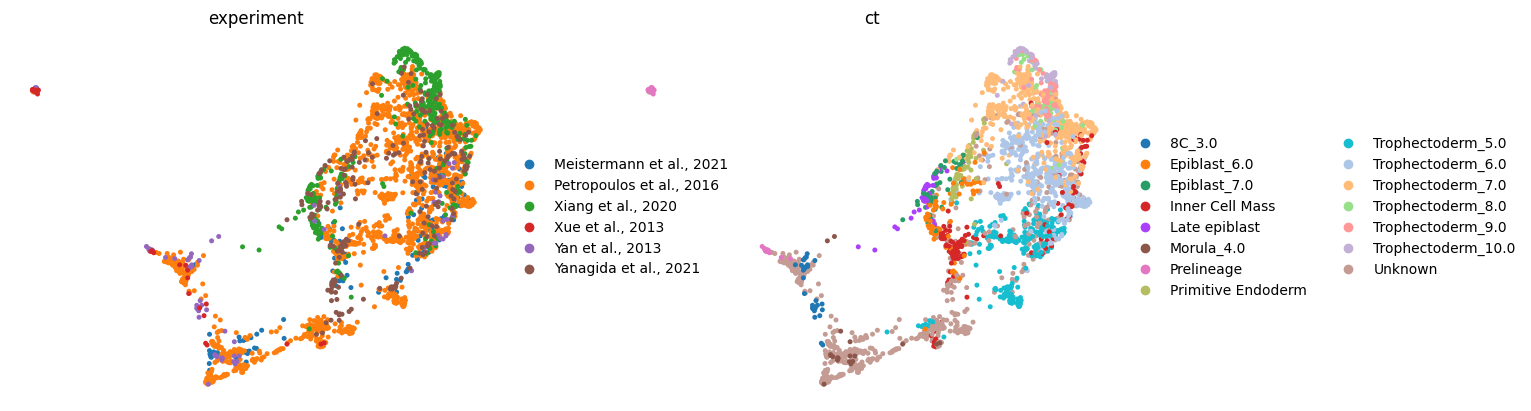

sc.pl.draw_graph(adata, color=['experiment', 'ct'], frameon=False, ncols=2, cmap='tab20')

2.2 2.2. scFATEs

sc.pp.neighbors(adata, use_rep=USE_REP)
sc.tl.draw_graph(adata, n_jobs=10, random_state=9)

sc.pl.draw_graph(adata, color=['dpt_pseudotime', 'ct'], frameon=False, ncols=2, cmap='tab20')

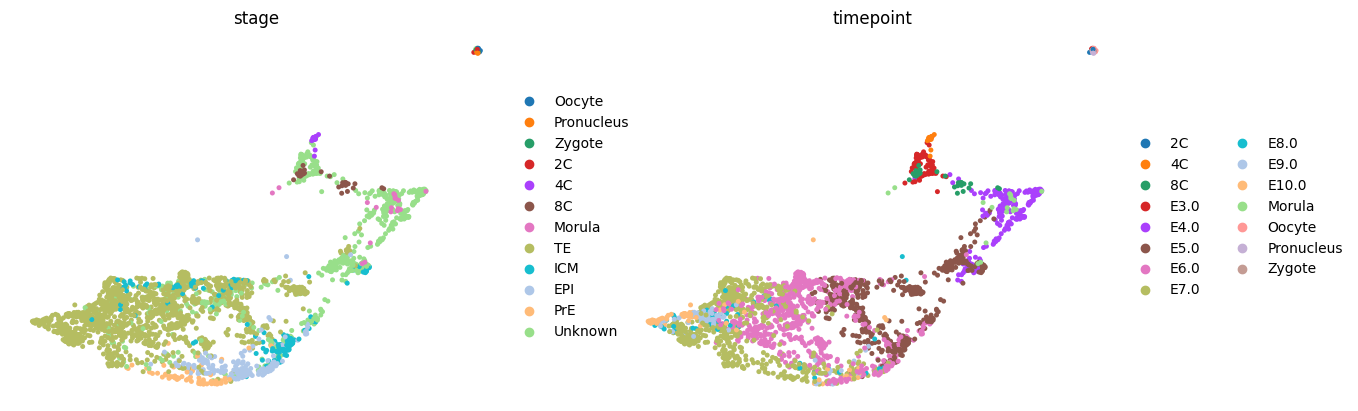

sc.pl.draw_graph(adata, color=['stage', 'timepoint'], frameon=False, ncols=2, cmap='tab20')

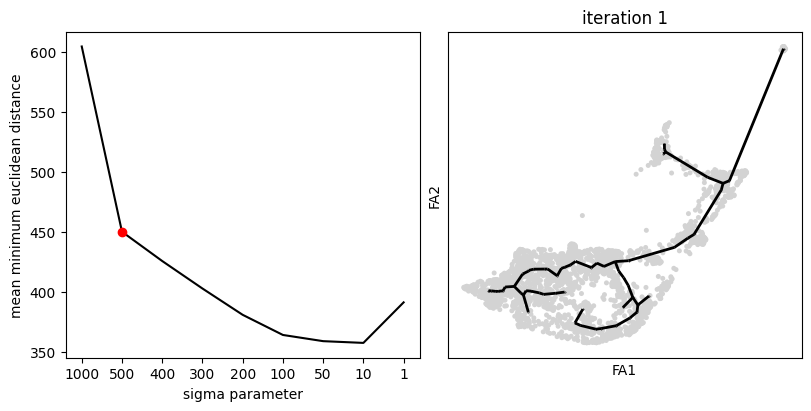

sig = scf.tl.explore_sigma(adata,
                         # Nodes=20,
                         Nodes=60,
                         use_rep="X_draw_graph_fa",
                         sigmas=[1000,500,400,300,200,100,50,10,1],
                         seed=42,plot=True)

scf.tl.tree(adata,
            # Nodes=30,
            Nodes=60,
            use_rep="X_draw_graph_fa",
            method="ppt",
            ppt_nsteps=10,
            ppt_sigma=sig,
            ppt_lambda=100,
            seed=42)

inferring a principal tree --> parameters used
    60 principal points, sigma = 500, lambda = 100, metric = euclidean
    fitting: 100%|████████████████████████████████████████████████████████████████████████████████████| 10/10 [00:00<00:00, 248.42it/s]
    not converged (error: 0.1919399979722125)
    finished (0:00:00) --> added
    .uns['ppt'], dictionnary containing inferred tree.
    .obsm['X_R'] soft assignment of cells to principal points.
    .uns['graph']['B'] adjacency matrix of the principal points.
    .uns['graph']['F'] coordinates of principal points in representation space.

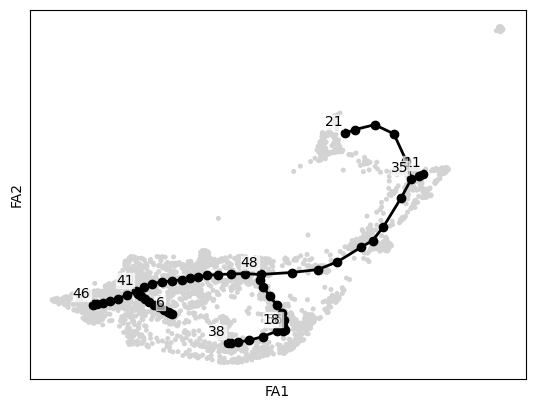

scf.pl.graph(adata)

scf.tl.root(adata, 21)

node 21 selected as a root --> added
    .uns['graph']['root'] selected root.
    .uns['graph']['pp_info'] for each PP, its distance vs root and segment assignment.
    .uns['graph']['pp_seg'] segments network information.

scf.tl.pseudotime(adata,n_jobs=10,n_map=10,seed=42)

projecting cells onto the principal graph
    mappings: 100%|████████████████████████████████████████████████████████████████████████████████████| 10/10 [00:54<00:00,  5.43s/it]
    finished (0:00:57) --> added
    .obs['edge'] assigned edge.
    .obs['t'] pseudotime value.
    .obs['seg'] segment of the tree assigned.
    .obs['milestones'] milestone assigned.
    .uns['pseudotime_list'] list of cell projection from all mappings.

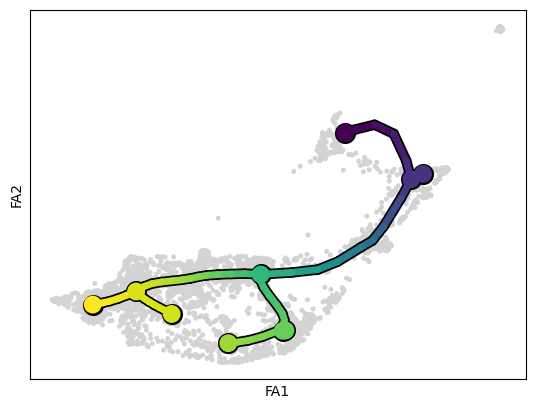

scf.pl.trajectory(adata)

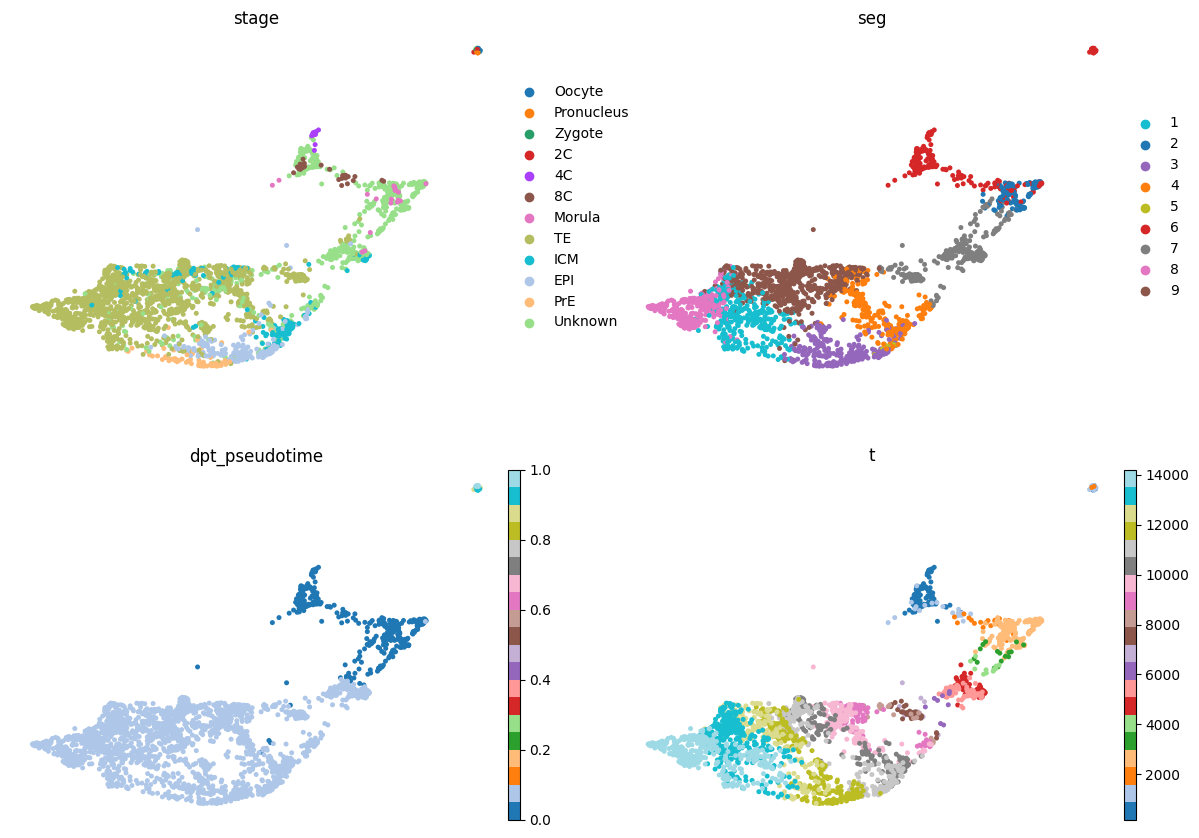

sc.pl.draw_graph(adata, color=['stage', 'seg', 'dpt_pseudotime', 't'], frameon=False, ncols=2, cmap='tab20')

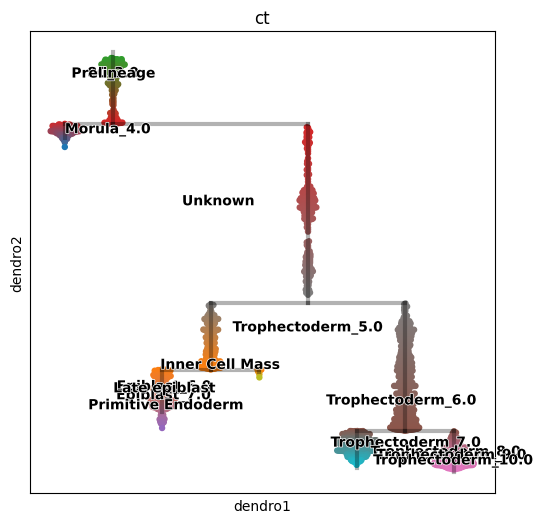

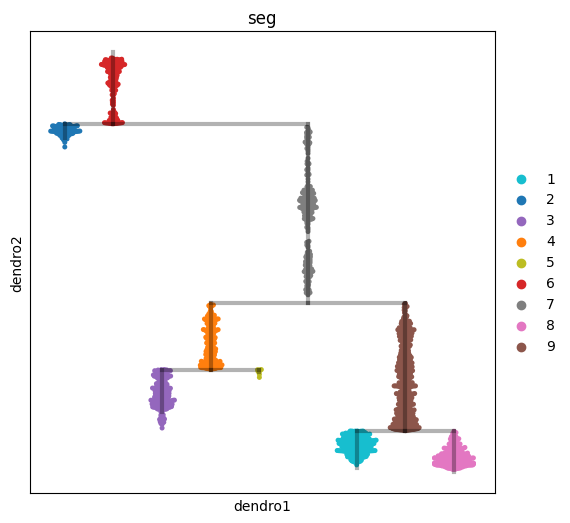

scf.tl.dendrogram(adata, n_jobs=8)
with plt.rc_context({"figure.figsize": (6, 6)}):
    scf.pl.dendrogram(adata,color="seg")
    scf.pl.dendrogram(adata,color="ct",legend_loc="on data",color_milestones=True,legend_fontoutline=True)

Generating dendrogram of tree
    segment : 100%|██████████████████████████████████████████████████████████████████████████████████████| 9/9 [00:02<00:00,  3.83it/s]
    finished (0:00:02) --> added
    .obsm['X_dendro'], new embedding generated.
    .uns['dendro_segments'] tree segments used for plotting.

2.3 2.3. Palantir

NOTE: doesn’t work, skipping

# import logging
# logging.getLogger("matplotlib.font_manager").setLevel(logging.ERROR)

# sc.pp.neighbors(adata, use_rep="X_scANVI")
# sce.tl.palantir(adata, use_adjacency_matrix=True, distances_key="distances")
# sc.tl.tsne(adata, n_pcs=2, use_rep='X_palantir_multiscale', perplexity=30)

# sc.pl.embedding(adata, basis='X_palantir_multiscale', color=['ct', 'stage'], frameon=False, ncols=2)

3 3. Differentially expressed genes

def filter_markers(df: pd.DataFrame, n_genes: int = 5, upper: bool = False):
    # significant only
    df = df[
        (df["is_de_fdr_0.05"])
        & (df["bayes_factor"] > 3)
        & (df["non_zeros_proportion1"] > 0.1)
        & (df["lfc_median"] > 0)
    ]
    comparisons = df.comparison.unique()

    deg_df = {}
    for comparison in comparisons:
        cluster = comparison.split(" ")[0]
        markers = (
            df.query("comparison == @comparison")
            .sort_values(by="lfc_median", ascending=False)
            .head(n_genes)
        )
        deg_df[cluster] = (
            markers.index.str.upper().tolist() if upper else markers.index.tolist()
        )

    return deg_df

vae = scvi.model.SCVI.load("../results/02_human_integration/scvi/")

INFO     File ../results/02_human_integration/scvi/model.pt already downloaded

m_ct = vae.differential_expression(groupby="ct")
m_ct_filt = filter_markers(m_ct, n_genes=10)

DE...: 100%|███████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:16<00:00,  1.07s/it]

pd.DataFrame.from_dict(m_ct_filt, orient='index').transpose()

	8C_3.0	Epiblast_6.0	Epiblast_7.0	Inner	Late	Morula_4.0	Prelineage	Primitive	Trophectoderm_5.0	Trophectoderm_6.0	Trophectoderm_7.0	Trophectoderm_8.0	Trophectoderm_9.0	Trophectoderm_10.0	Unknown
0	ENSG00000258223	ENSG00000143768	ENSG00000143768	ENSG00000010438	ENSG00000162344	ENSG00000285891	ENSG00000254659	ENSG00000259974	ENSG00000286361	ENSG00000127074	ENSG00000249861	ENSG00000077274	ENSG00000077274	ENSG00000166396	ENSG00000196289
1	ENSG00000285891	ENSG00000283567	ENSG00000283567	ENSG00000180644	ENSG00000136999	ENSG00000274764	ENSG00000285010	ENSG00000162998	ENSG00000287442	ENSG00000109205	ENSG00000203857	ENSG00000166396	ENSG00000166396	ENSG00000077274	ENSG00000258223
2	ENSG00000243073	ENSG00000146250	ENSG00000189184	ENSG00000166523	ENSG00000283567	ENSG00000178928	ENSG00000288545	ENSG00000167434	ENSG00000164089	ENSG00000137440	ENSG00000203783	ENSG00000254622	ENSG00000172927	ENSG00000172927	ENSG00000124557
3	ENSG00000254659	ENSG00000283405	ENSG00000146250	ENSG00000164530	ENSG00000198576	ENSG00000257951	ENSG00000146678	ENSG00000171557	ENSG00000204478	ENSG00000145681	ENSG00000124731	ENSG00000112195	ENSG00000254622	ENSG00000112195	ENSG00000287442
4	ENSG00000274764	ENSG00000102854	ENSG00000178860	ENSG00000136869	ENSG00000145423	ENSG00000258873	ENSG00000149507	ENSG00000125798	ENSG00000095596	ENSG00000198734	ENSG00000184502	ENSG00000136695	ENSG00000167767	ENSG00000254622	ENSG00000204479
5	ENSG00000213921	ENSG00000181234	ENSG00000102854	ENSG00000289643	ENSG00000178860	ENSG00000204501	ENSG00000253585	ENSG00000229214	ENSG00000010438	ENSG00000104921	ENSG00000096088	ENSG00000167767	ENSG00000136695	ENSG00000142623	ENSG00000259009
6	ENSG00000272382	ENSG00000189184	ENSG00000243232	ENSG00000179934	ENSG00000106341	ENSG00000287512	ENSG00000237469	ENSG00000125848	ENSG00000198883	ENSG00000121769	ENSG00000135346	ENSG00000099250	ENSG00000112195	ENSG00000125084	ENSG00000251360
7	ENSG00000226185	ENSG00000166523	ENSG00000174807	ENSG00000125845	ENSG00000174807	ENSG00000258223	ENSG00000205126	ENSG00000164736	ENSG00000124557	ENSG00000188176	ENSG00000082074	ENSG00000203857	ENSG00000158786	ENSG00000221826	ENSG00000272382
8	ENSG00000277058	ENSG00000118785	ENSG00000133083	ENSG00000167755	ENSG00000067840	ENSG00000239810	ENSG00000132514	ENSG00000243978	ENSG00000251360	ENSG00000165092	ENSG00000135046	ENSG00000158786	ENSG00000203857	ENSG00000274286	ENSG00000257951
9	ENSG00000204501	ENSG00000134817	ENSG00000118785	ENSG00000133937	ENSG00000133083	ENSG00000277058	ENSG00000172680	ENSG00000146374	ENSG00000121933	ENSG00000163347	ENSG00000189052	ENSG00000203783	ENSG00000139209	ENSG00000185112	ENSG00000254659

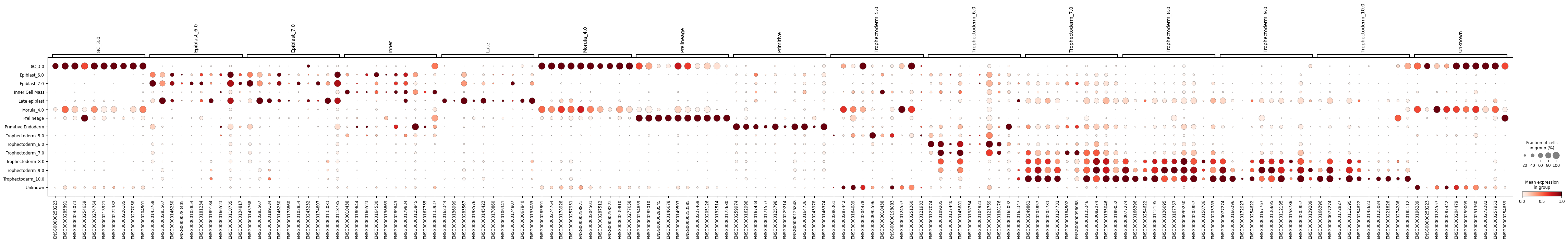

sc.pl.dotplot(adata, m_ct_filt, groupby='ct', dendrogram=False, standard_scale='var')

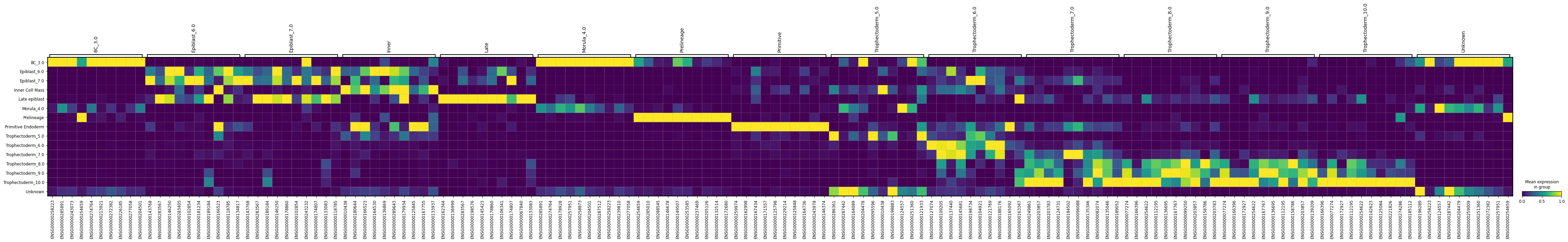

sc.pl.matrixplot(adata, m_ct_filt, groupby='ct', dendrogram=False, standard_scale='var')

3.1 4. Markers

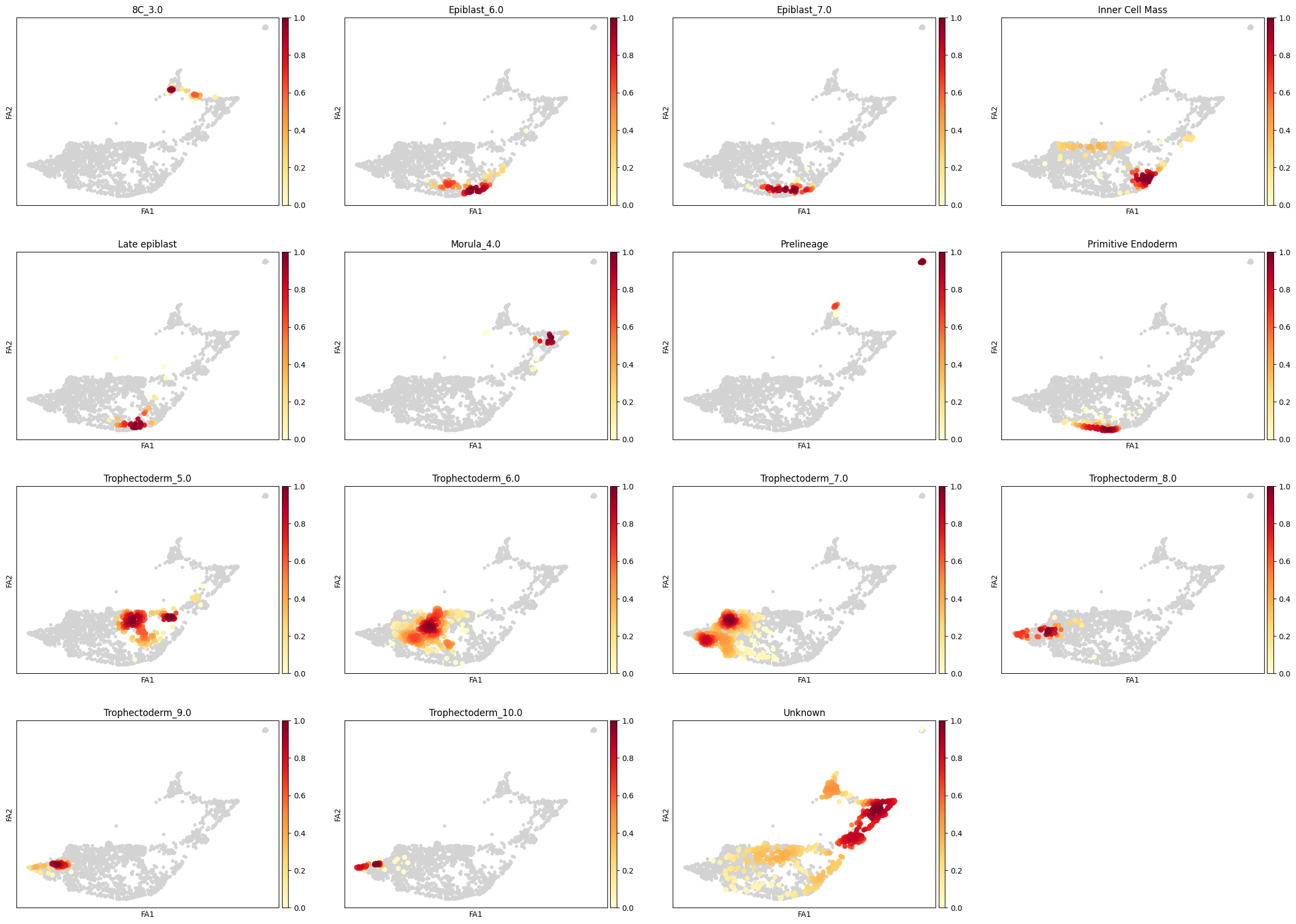

sc.tl.embedding_density(adata, basis='draw_graph_fa', groupby='ct')
sc.pl.embedding_density(adata, basis='draw_graph_fa', key='draw_graph_fa_density_ct')

# lineage_markers = pd.read_excel("../data/external/mouse_lineage_markers.xlsx", sheet_name="Sheet1").fillna('')
# lineage_markers

# for stage, genes in lineage_markers.to_dict('list').items():
#     common_genes = adata.var_names.intersection([str.lower(g) for g in genes if g != ''])
#     sc.pl.draw_graph(adata, color=['stage', *common_genes], title=[stage, *common_genes],
#                      groups=stage, legend_loc=None, frameon=False, ncols=len(common_genes) + 1)

4 Save model

adata.write("../results/03_human.processed.h5ad")

5 4. OTHER

5.1 2. scGEN

scGen returns imputed counts only. In this case we are not able to run DEGs because we need to have normalized counts. The predict function also won’t work because we don’t have any perturbation in the dataset.

import scgen

mscgen = scgen.SCGEN.load("../results/02_mouse_integration/scgen/")

corrected_adata = mscgen.batch_removal()
corrected_adata

sc.pp.neighbors(corrected_adata, use_rep='corrected_latent')
sc.tl.draw_graph(corrected_adata)

sc.pl.draw_graph(corrected_adata, color=['ct', 'Stage'], wspace=0.4, frameon=False)

sc.tl.umap(corrected_adata)
sc.pl.umap(corrected_adata, color=['batch', 'Stage'], wspace=0.4, frameon=False)

5.2 3. Integration stats

from rich import print
from scib_metrics.benchmark import Benchmarker

bm = Benchmarker(
    adata,
    batch_key="batch",
    label_key="ct",
    embedding_obsm_keys=["X_pca", "X_scVI", "X_scANVI", "X_scgen"],
    n_jobs=-1,
)
bm.benchmark()

bm.plot_results_table(min_max_scale=False)

from pysankey import sankey


%run ../scripts/helpers.py

sc.tl.dendrogram(adata, groupby="leiden", key_added="dendrogram_leiden")
sc.tl.dendrogram(adata, groupby="ct", key_added="dendrogram_ct")

with plt.rc_context({"figure.figsize": [20, 20]}):
    sc.pl.correlation_matrix(adata, groupby="ct", show_correlation_numbers=True)

_ = sc.pl.dendrogram(adata, groupby="ct", orientation='top')

5.3 3.1. Prediction

def get_predictions(lvae: scvi.model.SCANVI, threshold: float = 0.85):
    df = pd.DataFrame(zip(predictions.idxmax(axis=1), predictions.max(axis=1)), columns=['predicted', 'score'])
    df['predicted_filt'] = 'Unknown'
    df.loc[df.score >= threshold, 'predicted_filt'] = df.loc[df.score >= threshold, 'predicted']
    df['uncertainty'] = np.maximum(1 - df.score, 0)

    return df

lvae = scvi.model.SCANVI.load("../results/02-mouse/")
adata.obs[["predicted", "score", "predicted_filt", "uncertainty"]] = get_predictions(lvae).values

sc.pl.draw_graph(adata, color=['ct', 'predicted', 'uncertainty'], frameon=False, ncols=3)

df = adata.obs.groupby(["ct", "predicted"]).size().unstack(fill_value=0)
norm_df = df / df.sum(axis=0)

plt.figure(figsize=(8, 8))
_ = plt.pcolor(norm_df)
_ = plt.xticks(np.arange(0.5, len(df.columns), 1), df.columns, rotation=90)
_ = plt.yticks(np.arange(0.5, len(df.index), 1), df.index)
_ = plt.colorbar()
plt.xlabel("Predicted")
plt.ylabel("Observed")

# Stats
from sklearn.metrics import balanced_accuracy_score

balanced_accuracy_score(adata.obs["ct"].values, adata.obs["predicted"].values)
