03 - mouse analysis

Author

Martin Proks

Published

February 8, 2025

!which pip
/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/bin/pip
%matplotlib inline

import numpy as np
import pandas as pd
import seaborn as sns

import scvi
import scanpy as sc
import scanpy.external as sce
import scFates as scf
import matplotlib.pyplot as plt

import warnings
from numba.core.errors import NumbaDeprecationWarning
warnings.simplefilter('ignore', category=NumbaDeprecationWarning)
warnings.simplefilter('ignore', category=FutureWarning)
warnings.simplefilter('ignore', category=UserWarning)
/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/lib/python3.10/site-packages/scvi/_settings.py:63: UserWarning: Since v1.0.0, scvi-tools no longer uses a random seed by default. Run `scvi.settings.seed = 0` to reproduce results from previous versions.
  self.seed = seed
/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/lib/python3.10/site-packages/scvi/_settings.py:70: UserWarning: Setting `dl_pin_memory_gpu_training` is deprecated in v1.0 and will be removed in v1.1. Please pass in `pin_memory` to the data loaders instead.
  self.dl_pin_memory_gpu_training = (
/projects/dan1/data/Brickman/conda/envs/scvi-1.0.0/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm
adata = sc.read("../results/02_mouse_integration/scvi/adata.h5ad")
adata
AnnData object with n_obs × n_vars = 2004 × 3000
    obs: 'batch', 'experiment', 'technology', 'ct', 'ct_orig', 'stage', 'timepoint', 'n_genes_by_counts', 'total_counts', 'total_counts_mt', 'pct_counts_mt', 'n_genes', 'n_counts', 'batch_og', '_scvi_batch', '_scvi_labels'
    var: 'gene_ids', 'gene_symbol', 'mt', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'highly_variable_nbatches', 'highly_variable_intersection'
    uns: '_scvi_manager_uuid', '_scvi_uuid', 'hvg', 'log1p'
    obsm: 'X_mde_scVI', 'X_scVI'
    layers: 'counts', 'scVI_normalized'

1 1. SCVI

USE_REP = 'X_scVI'
# Ideally find 15 clusters

sc.pp.neighbors(adata, use_rep=USE_REP)
sc.tl.leiden(adata, resolution=0.8)
2023-09-23 17:00:49.975107: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Could not find TensorRT

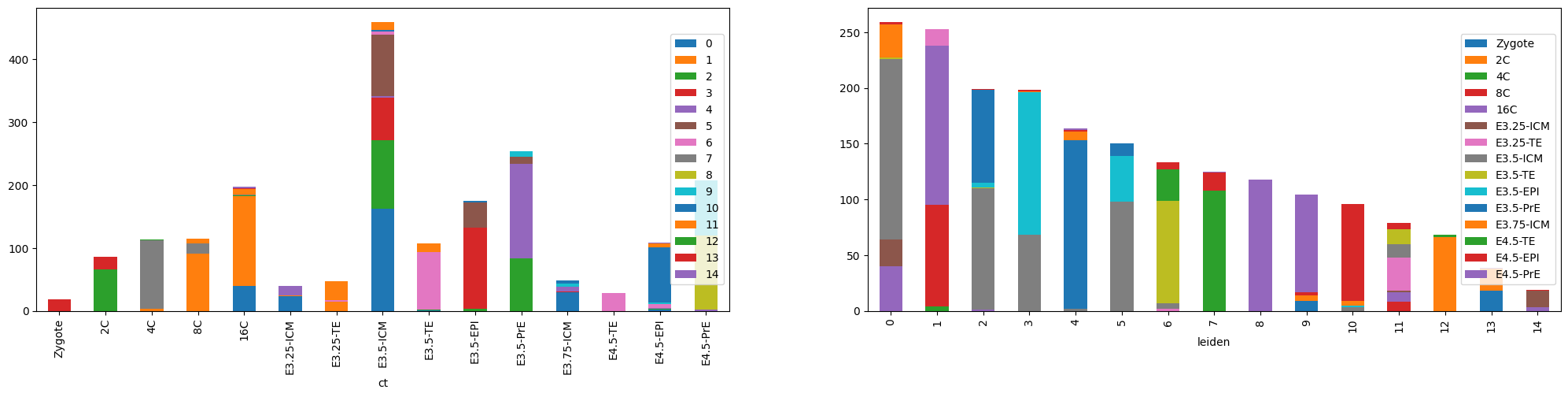

fig, ax = plt.subplots(1, 2, figsize=[25, 5])
adata.obs.groupby(['ct', 'leiden']).size().unstack().plot(kind='bar', stacked=True, ax=ax[0]).legend(loc='right')
adata.obs.groupby(['leiden', 'ct']).size().unstack().plot(kind='bar', stacked=True, ax=ax[1]).legend(loc='right')
<matplotlib.legend.Legend at 0x7f1a6a933fa0>

1.1 1.0. PCA

sc.tl.pca(adata)
sc.pl.pca(adata, color=['stage', 'ct'], frameon=False, ncols=2)

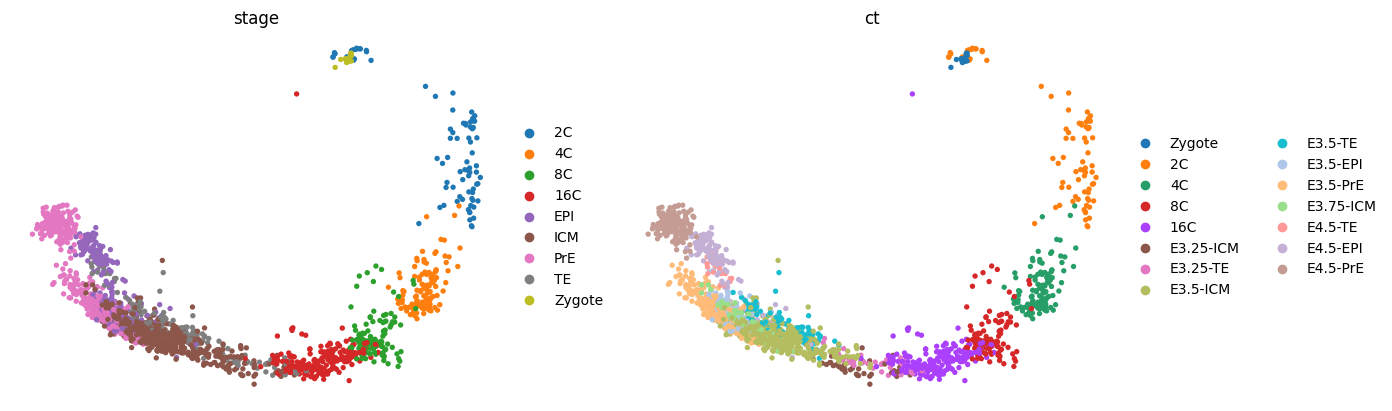

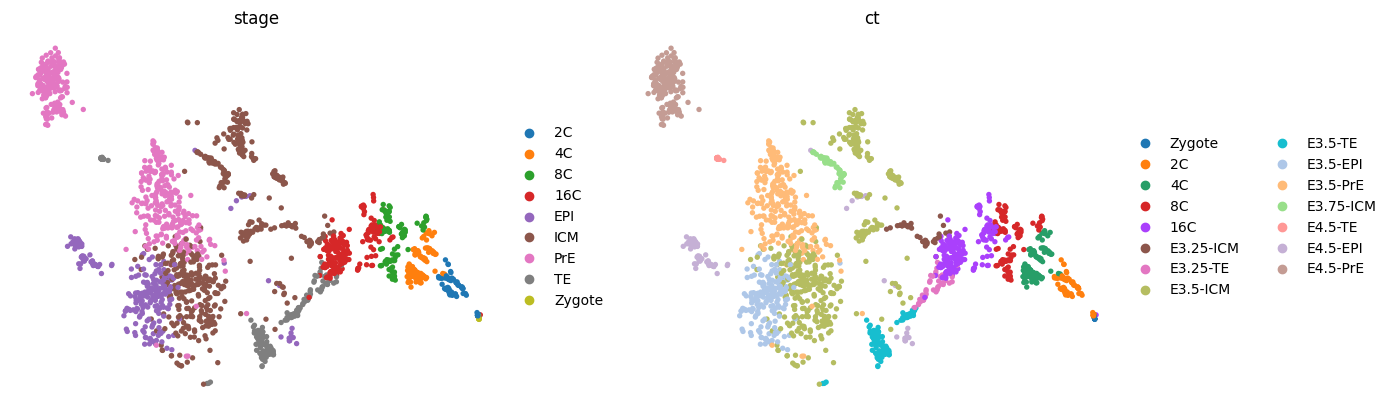

1.2 1.1. UMAP

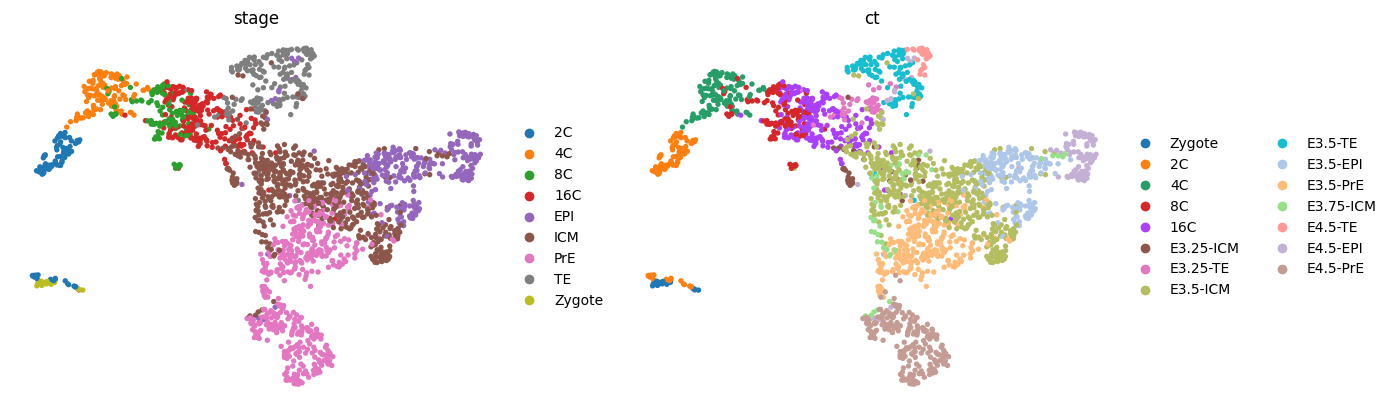

sc.tl.umap(adata)
sc.pl.umap(adata, color=['stage', 'ct'], frameon=False, ncols=2)

1.3 1.2. Phate

sce.tl.phate(adata, n_jobs=8)
sce.pl.phate(adata, color=['stage', 'ct'], frameon=False, ncols=2)

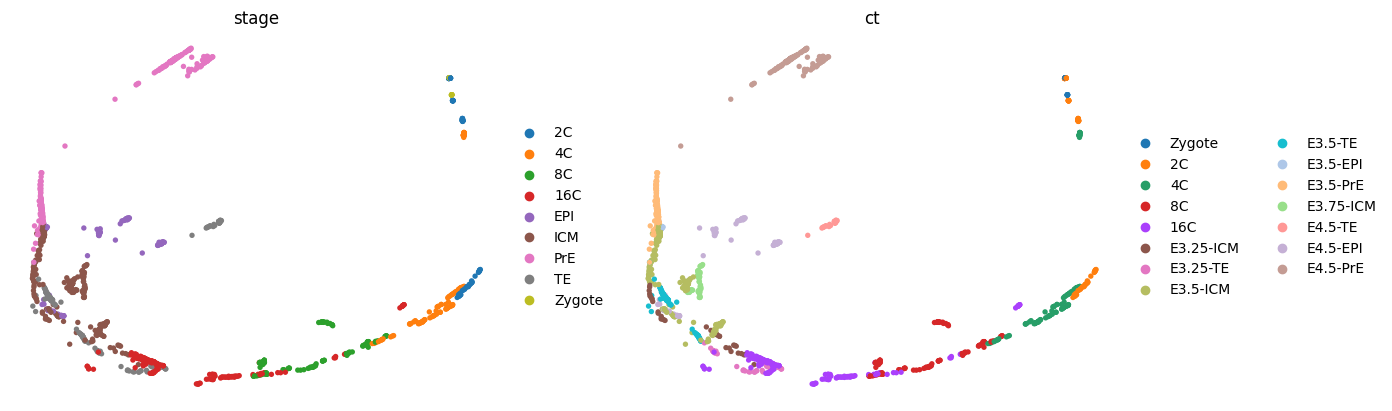

1.4 1.3. t-SNE

sc.tl.tsne(adata, n_jobs=8, perplexity=300)
sc.pl.tsne(adata, color=['stage', 'ct'], frameon=False, ncols=2)

1.5 1.4. Force Directed Graph

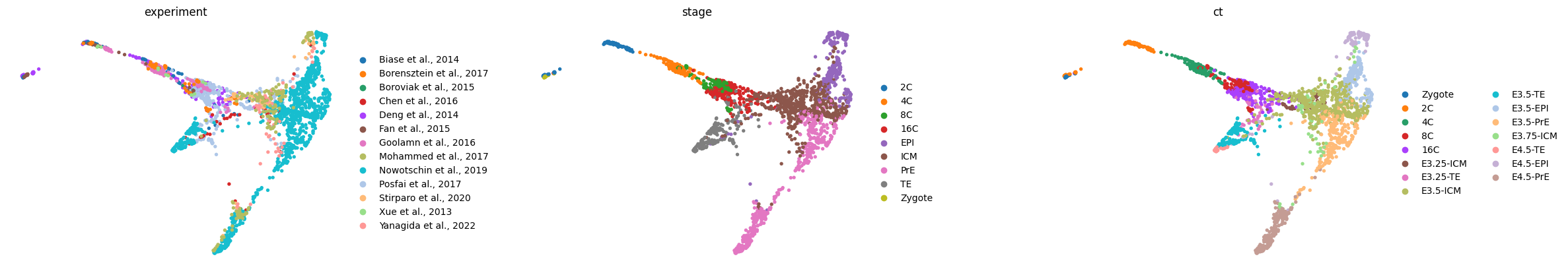

sc.tl.draw_graph(adata, n_jobs=8)
sc.pl.draw_graph(adata, color=['experiment', 'stage', 'ct'], frameon=False, ncols=3, wspace=0.4)

1.6 1.5. DC

# Bug: https://github.com/scverse/scanpy/issues/2254

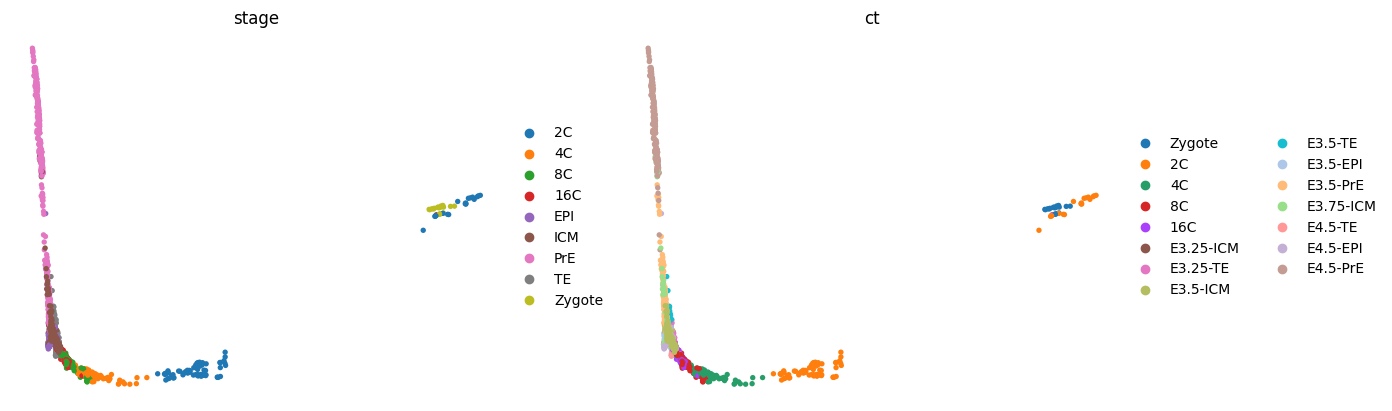

sc.tl.diffmap(adata)

adata.obsm["X_diffmap_"] = adata.obsm["X_diffmap"][:, 1:]
sc.pl.embedding(adata, "diffmap_", color=['stage', 'ct'], frameon=False, ncols=2)

2 2. Pseudotime

adata
AnnData object with n_obs × n_vars = 2004 × 3000
    obs: 'batch', 'experiment', 'technology', 'ct', 'ct_orig', 'stage', 'timepoint', 'n_genes_by_counts', 'total_counts', 'total_counts_mt', 'pct_counts_mt', 'n_genes', 'n_counts', 'batch_og', '_scvi_batch', '_scvi_labels', 'leiden'
    var: 'gene_ids', 'gene_symbol', 'mt', 'n_cells_by_counts', 'mean_counts', 'pct_dropout_by_counts', 'total_counts', 'n_cells', 'highly_variable', 'means', 'dispersions', 'dispersions_norm', 'highly_variable_nbatches', 'highly_variable_intersection'
    uns: '_scvi_manager_uuid', '_scvi_uuid', 'hvg', 'log1p', 'neighbors', 'leiden', 'pca', 'stage_colors', 'ct_colors', 'umap', 'tsne', 'draw_graph', 'experiment_colors', 'diffmap_evals'
    obsm: 'X_mde_scVI', 'X_scVI', 'X_pca', 'X_umap', 'X_phate', 'X_tsne', 'X_draw_graph_fa', 'X_diffmap', 'X_diffmap_'
    varm: 'PCs'
    layers: 'counts', 'scVI_normalized'
    obsp: 'distances', 'connectivities'

2.1 2.1. DPT package

sc.pp.neighbors(adata, use_rep=USE_REP)
sc.tl.diffmap(adata)

sc.tl.paga(adata, groups='ct')

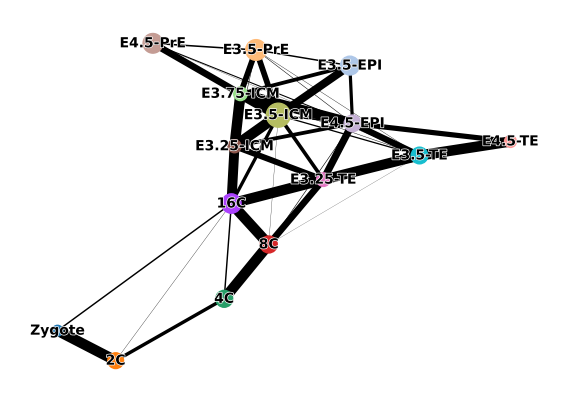

sc.pl.paga(adata, color=['ct'], frameon=False, fontoutline=True)
sc.tl.draw_graph(adata, init_pos='paga', n_jobs=10)

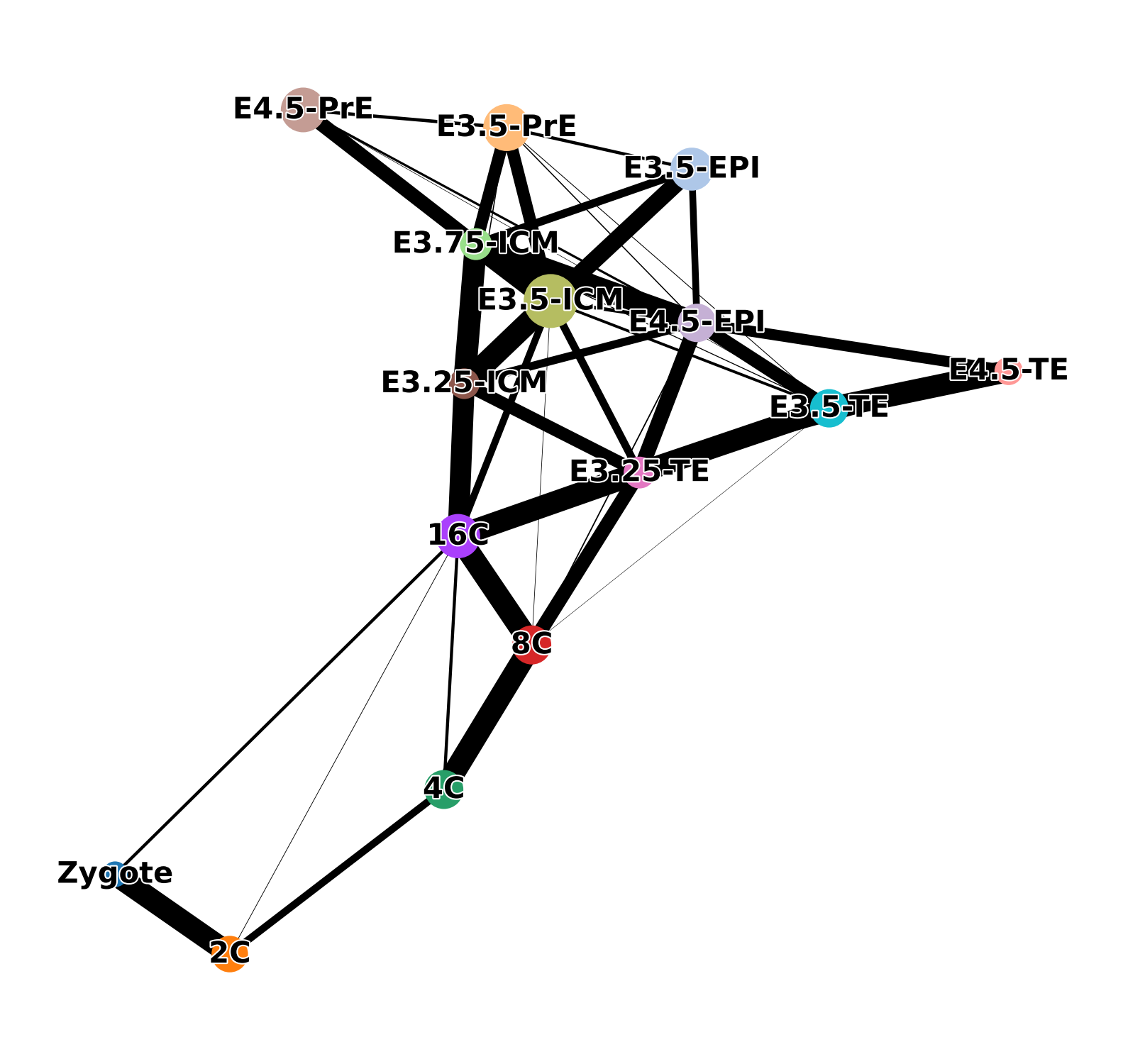

with plt.rc_context({"figure.figsize": (6, 6), "figure.dpi": (300)}):
    sc.pl.paga(adata, color=['ct'], frameon=False, fontoutline=True)

adata.uns['iroot'] = np.flatnonzero(adata.obs['ct']  == 'Zygote')[0]
sc.tl.dpt(adata)

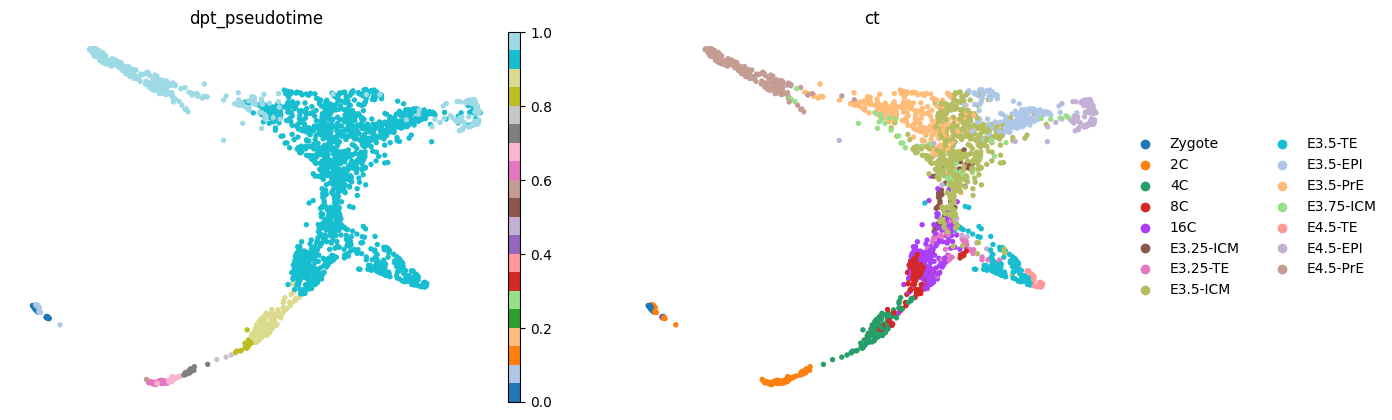

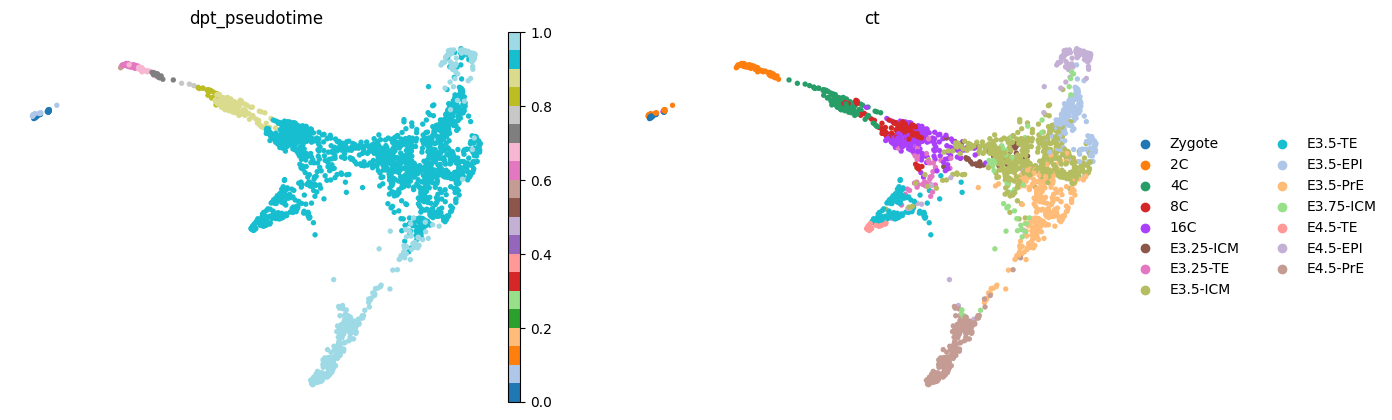

sc.pl.draw_graph(adata, color=['dpt_pseudotime', 'ct'], frameon=False, ncols=2, cmap='tab20')

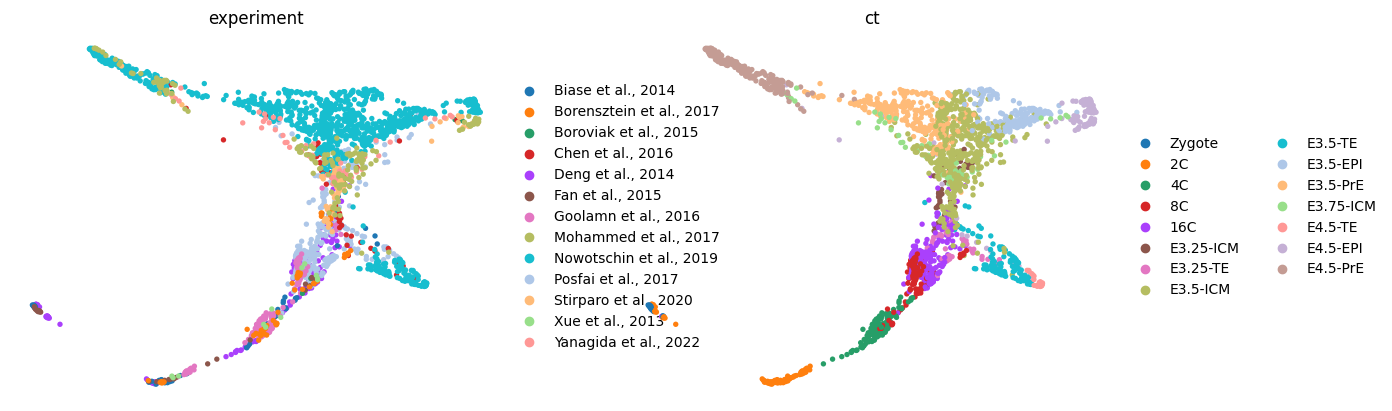

sc.pl.draw_graph(adata, color=['experiment', 'ct'], frameon=False, ncols=2, cmap='tab20')

2.2 2.2. scFATEs

sc.pp.neighbors(adata, use_rep=USE_REP)
sc.tl.draw_graph(adata, n_jobs=10)
sc.pl.draw_graph(adata, color=['dpt_pseudotime', 'ct'], frameon=False, ncols=2, cmap='tab20')

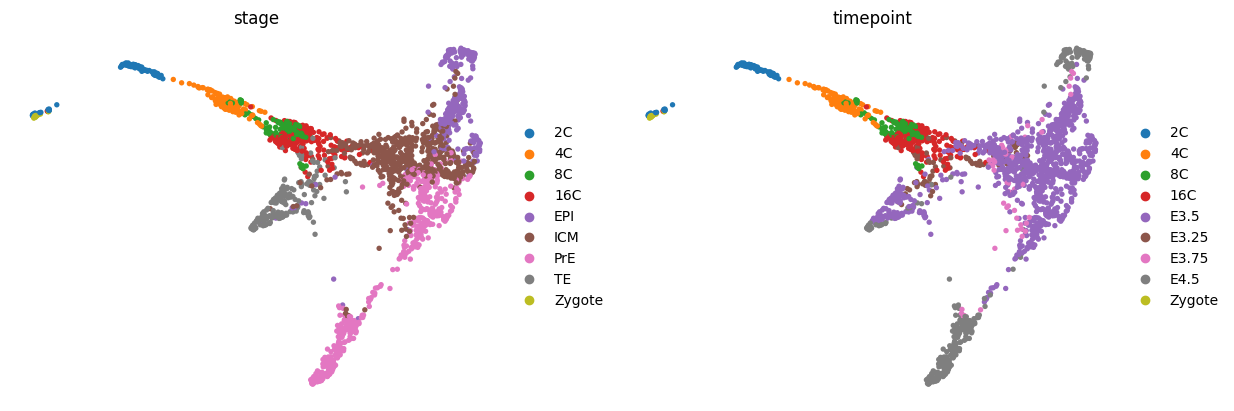

sc.pl.draw_graph(adata, color=['stage', 'timepoint'], frameon=False, ncols=2, cmap='tab20')

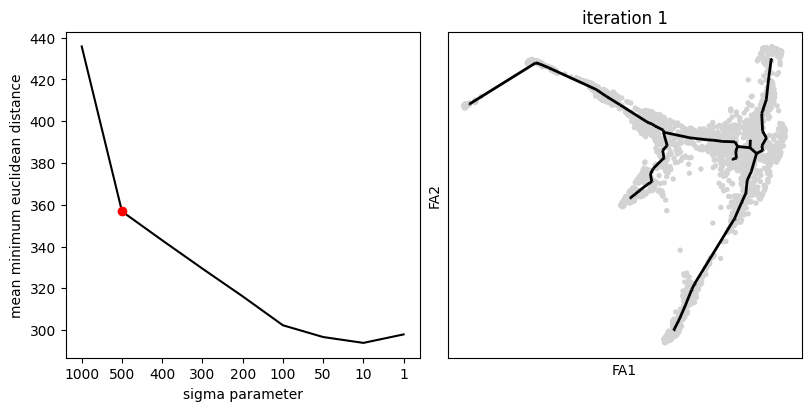

sig = scf.tl.explore_sigma(adata,
                         # Nodes=20,
                         Nodes=60,
                         use_rep="X_draw_graph_fa",
                         sigmas=[1000,500,400,300,200,100,50,10,1],
                         seed=42,plot=True)

scf.tl.tree(adata,
            # Nodes=30,
            Nodes=60,
            use_rep="X_draw_graph_fa",
            method="ppt",
            ppt_nsteps=10,
            ppt_sigma=sig,
            ppt_lambda=100,
            seed=42)
inferring a principal tree --> parameters used
    60 principal points, sigma = 500, lambda = 100, metric = euclidean
    fitting: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [00:00<00:00, 265.16it/s]
    not converged (error: 0.019733842722593525)
    finished (0:00:00) --> added
    .uns['ppt'], dictionnary containing inferred tree.
    .obsm['X_R'] soft assignment of cells to principal points.
    .uns['graph']['B'] adjacency matrix of the principal points.
    .uns['graph']['F'] coordinates of principal points in representation space.

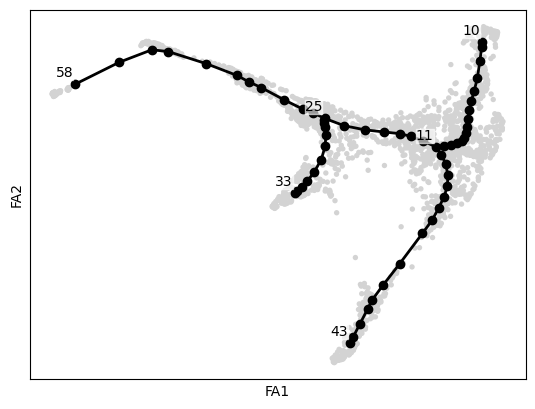

scf.pl.graph(adata)

scf.tl.root(adata, 58)
node 58 selected as a root --> added
    .uns['graph']['root'] selected root.
    .uns['graph']['pp_info'] for each PP, its distance vs root and segment assignment.
    .uns['graph']['pp_seg'] segments network information.
scf.tl.pseudotime(adata,n_jobs=10,n_map=10,seed=42)
projecting cells onto the principal graph
    mappings: 100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [00:21<00:00,  2.14s/it]
    finished (0:00:22) --> added
    .obs['edge'] assigned edge.
    .obs['t'] pseudotime value.
    .obs['seg'] segment of the tree assigned.
    .obs['milestones'] milestone assigned.
    .uns['pseudotime_list'] list of cell projection from all mappings.

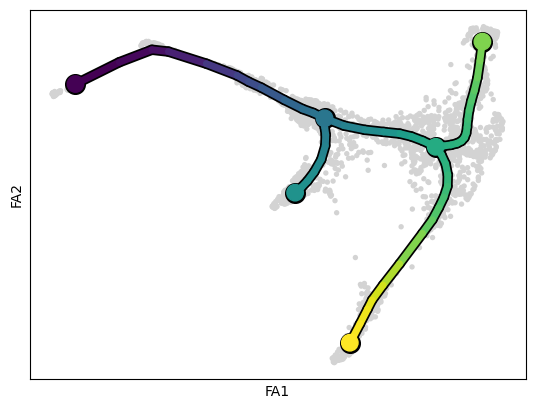

scf.pl.trajectory(adata)

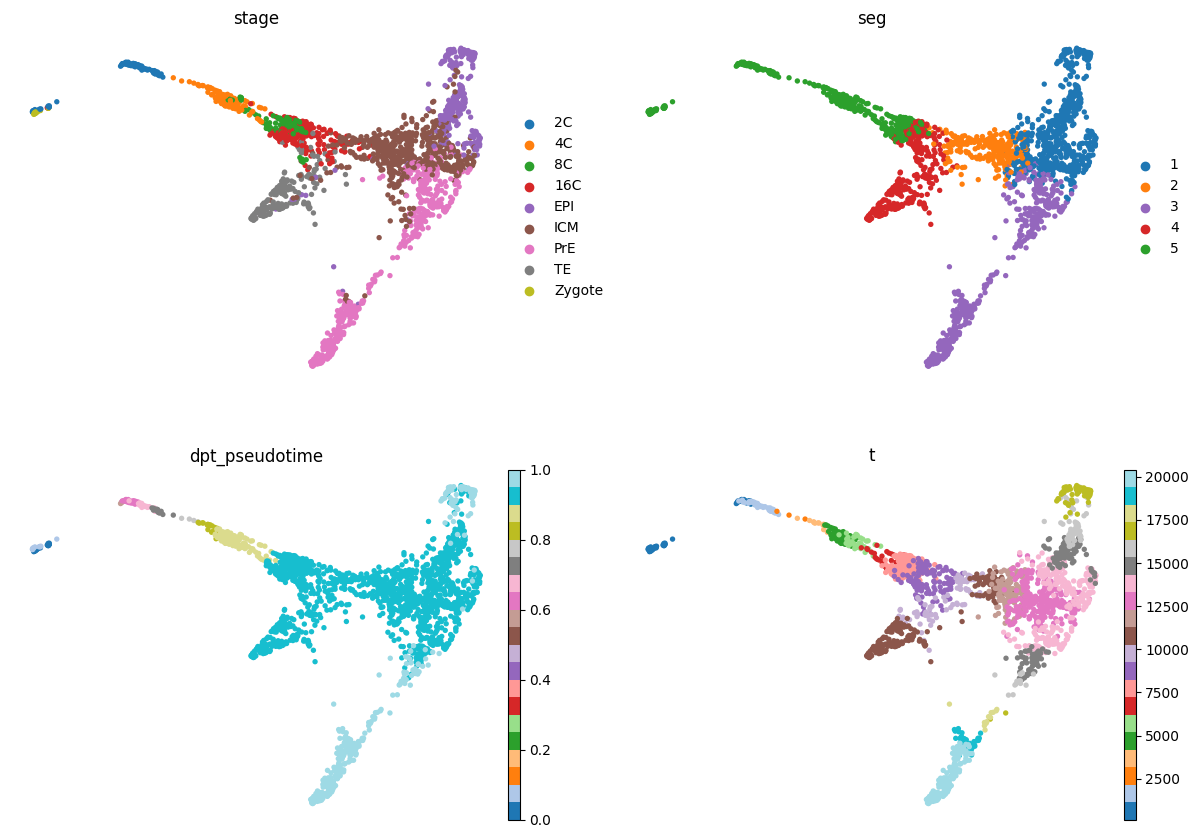

sc.pl.draw_graph(adata, color=['stage', 'seg', 'dpt_pseudotime', 't'], frameon=False, ncols=2, cmap='tab20')

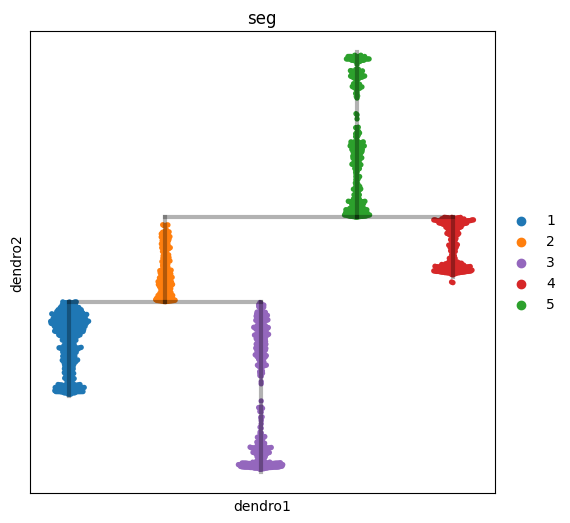

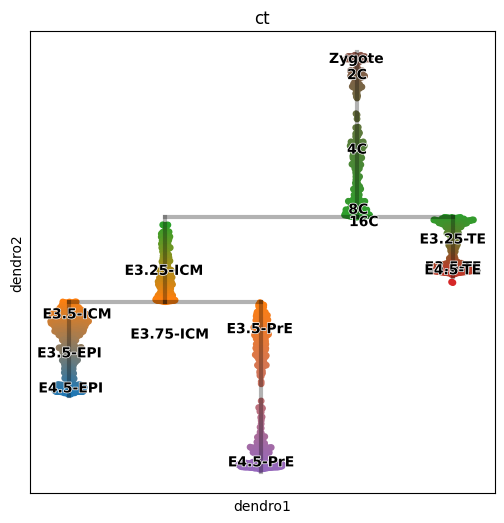

scf.tl.dendrogram(adata, n_jobs=8)
with plt.rc_context({"figure.figsize": (6, 6)}):
    scf.pl.dendrogram(adata,color="seg")
    scf.pl.dendrogram(adata,color="ct",legend_loc="on data",color_milestones=True,legend_fontoutline=True)
Generating dendrogram of tree
    segment : 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 5/5 [00:02<00:00,  2.18it/s]
    finished (0:00:02) --> added
    .obsm['X_dendro'], new embedding generated.
    .uns['dendro_segments'] tree segments used for plotting.

2.3 2.3. Palantir

NOTE: doesn’t work, skipping

# import logging
# logging.getLogger("matplotlib.font_manager").setLevel(logging.ERROR)

# sc.pp.neighbors(adata, use_rep="X_scANVI")
# sce.tl.palantir(adata, use_adjacency_matrix=True, distances_key="distances")
# sc.tl.tsne(adata, n_pcs=2, use_rep='X_palantir_multiscale', perplexity=30)

# sc.pl.embedding(adata, basis='X_palantir_multiscale', color=['ct', 'stage'], frameon=False, ncols=2)

3 3. Differentially expressed genes

def filter_markers(df: pd.DataFrame, n_genes: int = 5, upper: bool = False):
    # significant only
    df = df[
        (df["is_de_fdr_0.05"])
        & (df["bayes_factor"] > 3)
        & (df["non_zeros_proportion1"] > 0.1)
        & (df["lfc_median"] > 0)
    ]
    comparisons = df.comparison.unique()

    deg_df = {}
    for comparison in comparisons:
        cluster = comparison.split(" ")[0]
        markers = (
            df.query("comparison == @comparison")
            .sort_values(by="lfc_median", ascending=False)
            .head(n_genes)
        )
        deg_df[cluster] = (
            markers.index.str.upper().tolist() if upper else markers.index.tolist()
        )

    return deg_df
vae = scvi.model.SCVI.load("../results/02_mouse_integration/scvi/")
INFO     File ../results/02_mouse_integration/scvi/model.pt already downloaded
m_ct = vae.differential_expression(groupby="ct")
m_ct_filt = filter_markers(m_ct, n_genes=10)
DE...: 100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 15/15 [00:16<00:00,  1.11s/it]
pd.DataFrame.from_dict(m_ct_filt, orient='index').transpose()
Zygote 2C 4C 8C 16C E3.25-ICM E3.25-TE E3.5-ICM E3.5-TE E3.5-EPI E3.5-PrE E3.75-ICM E4.5-TE E4.5-EPI E4.5-PrE
0 aa545190 oog3 obox8 obox8 a430060f13rik gm24289 gata3 1700021a07rik tmprss2 fbxw10 gm19510 rnase12 s100a9 calca has2
1 oosp3 au016765 gm4850 gm21731 gm11544 gm24920 gm24920 dglucy adh1 nkain4 foxa2 iglv2 fasl nphs1os clic5
2 au016765 oosp3 b020004c17rik gm11544 xkr9 gm24616 gm24289 gm807 slc15a2 lefty2 lefty2 nnmt cald1 gm12690 spink1
3 oog3 gm4850 oog3 a430060f13rik dio1 xkr9 gm5907 aldh3a1 epn3 mal sox17 c330004p14rik rhox6 stmn2 clic6
4 obox2 omt2a gm36976 b020004c17rik gm33508 gm25328 tmprss2 nkx6-2 cdx2 gm26564 dkk1 gm30717 h19 col18a1 habp2
5 c87499 aa545190 omt2a af067063 gm24289 snord35a cryab crygd gata3 cobl bmper gm6284 elf5 fgf15 tfec
6 e330034g19rik tcl1b5 d7ertd443e d7ertd443e gm5435 cck gm6334 sox2 dppa1 cd3g lmo2 gpx8 hpgd gm26564 rhox6
7 gm43269 tcl1b4 gm21731 gm13339 gm12446 gm25636 au021092 mal id2 myh13 f2r gm13339 ankrd1 ctsw ttr
8 tcl1b4 c87499 gdap1 dynap dynap dio1 arg2 lmo2 cryab gm12688 serpinh1 p3h2 slc16a3 prss50 chst15
9 oosp2 oosp2 spz1 xkr9 snord35a gm33508 nat8 gm5662 serpinb6b gm807 flrt3 stfa1 tmprss2 c330004p14rik p3h2

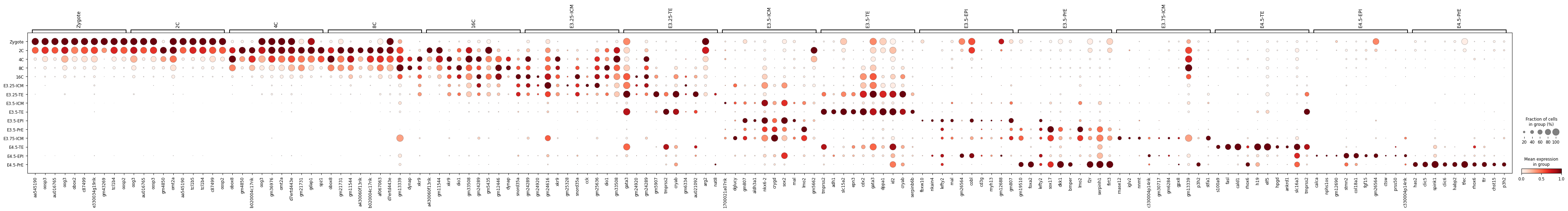

sc.pl.dotplot(adata, m_ct_filt, groupby='ct', dendrogram=False, standard_scale='var')

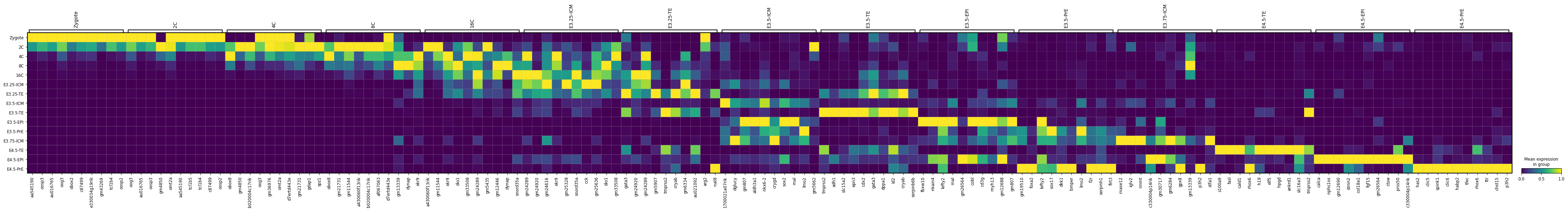

sc.pl.matrixplot(adata, m_ct_filt, groupby='ct', dendrogram=False, standard_scale='var')

3.1 4. Markers

  • zygote/2C: zscan4a, zscan4b, zscan4c, zscan4d, zscan4f
  • 8c: carm1, cdx2, pard3, pard6, apkc
  • totipotency: cdx2, gata6, nanog
  • apical domain: apkc, par2, par6, ezrin
  • basolateral domain: cdh1, lgl, par1
  • TE: cdx2, nanog, gata6
  • inner cell mass: pou5f1, nanog, gata6, sox2, lats, klf4, dppa3, esrrb
  • primitive endoderm: pou5f1, gata6, gata4, dab2, sox7, sox17, pdgfra, hnf4a
  • epiblast: pou5f1, nanog, sox2, fgf4, pecam, fgf5, bmp4, klf2
  • https://www.ncbi.nlm.nih.gov/pmc/articles/PMC1994725/
  • https://link.springer.com/article/10.1007/s00441-021-03530-8
  • https://journals.biologists.com/dev/article/143/7/1063/47817/Lineage-specification-in-the-mouse-preimplantation

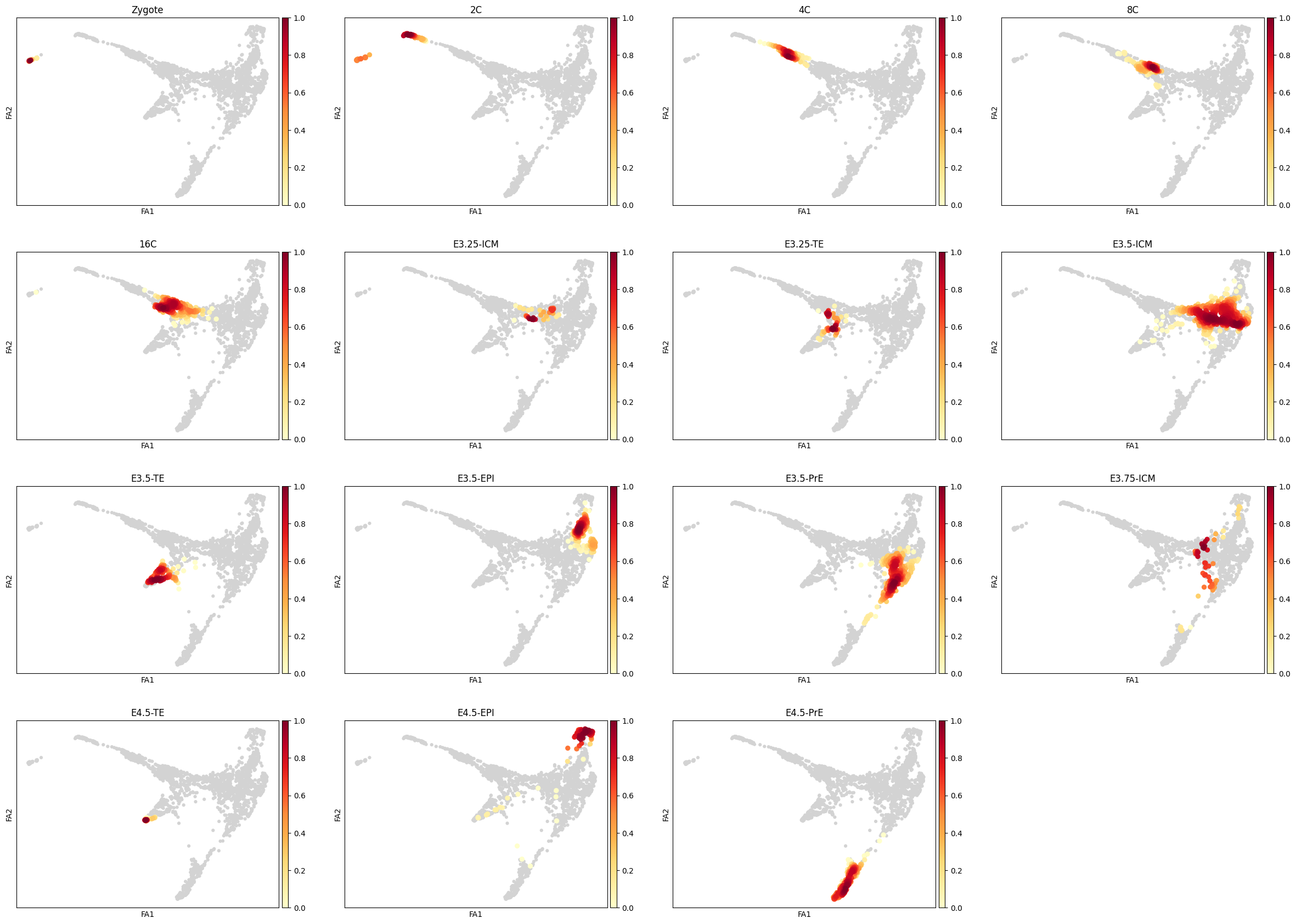

sc.tl.embedding_density(adata, basis='draw_graph_fa', groupby='ct')
sc.pl.embedding_density(adata, basis='draw_graph_fa', key='draw_graph_fa_density_ct')

lineage_markers = pd.read_excel("../data/external/mouse_lineage_markers.xlsx", sheet_name="Sheet1").fillna('')
lineage_markers
Zygote 2C 4C 8C 16C TE ICM PrE EPI
0 Zswim3 Zscan4a Sin3a Pou5f1 Pou5f1 Cdx2 Pou5f1 Gata6 Pou5f1
1 Trim28 Zscan4b Clock Nanog Nanog Gata3 Gata6 Gata4 Nanog
2 Padi6 Zscan4c Sox21 Sox2 Sox2 Gata2 Nanog Sox7 Sox2
3 Zscan4d Carm1 Cdx2 Cdx2 Eomes Tfcp2l1 Sox17 Fgf4
4 Zscan4f Yap1 Esrrb Lats2 Dppa3 Pdgfra Klf2
5 Zfp352 Eifg1 Prdm14 Tfap2c Esrrb Dab2
6 Usp17ld Prdm14 Tfap2c Prdm14
7 Rxra Gata3
8 Tmem92 Gata2
9 Pramef25
10 Dux

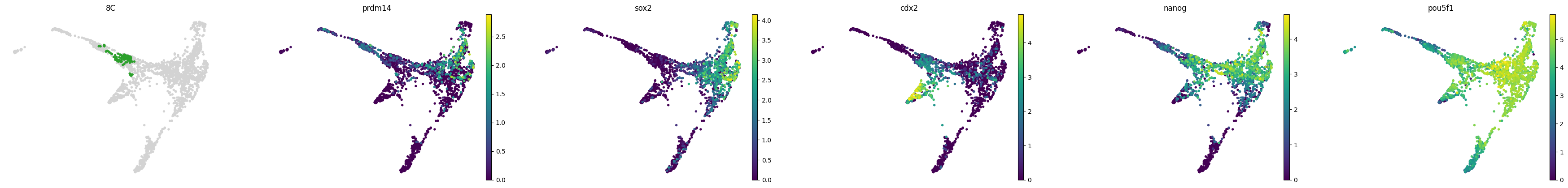

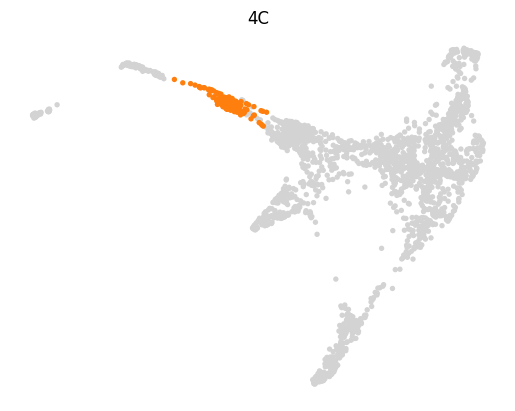

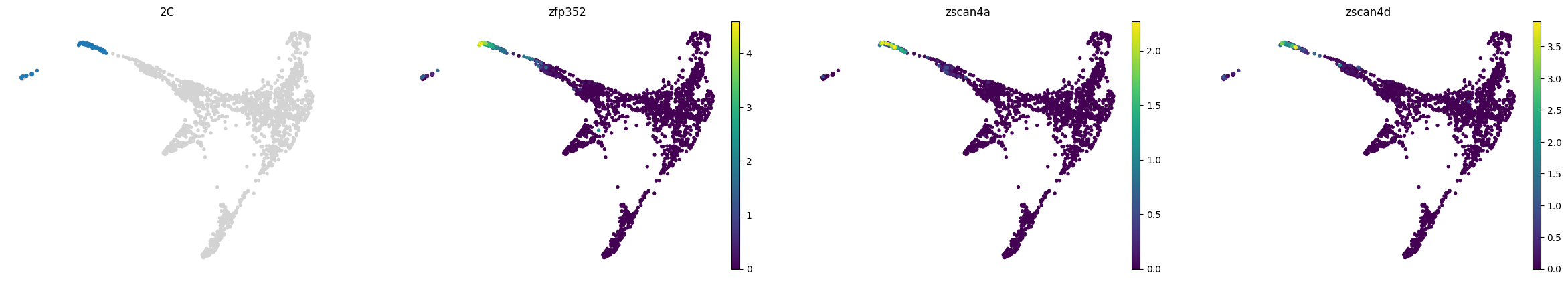

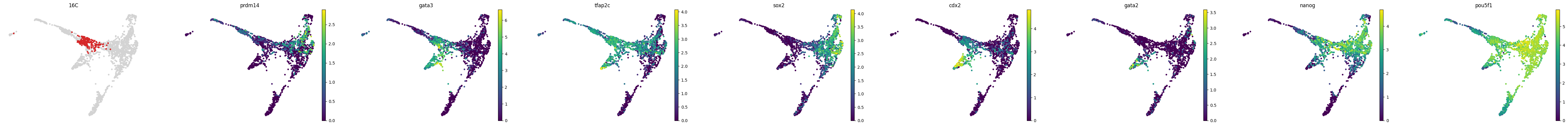

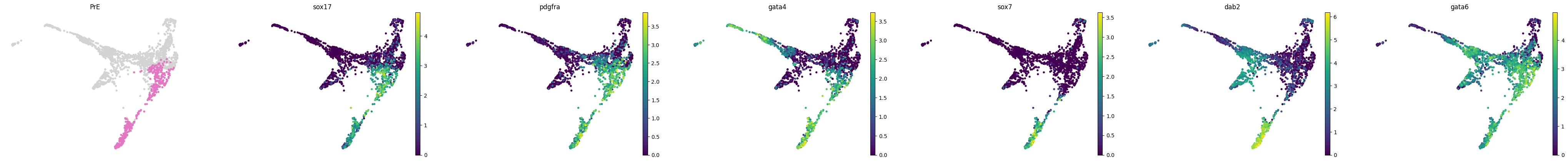

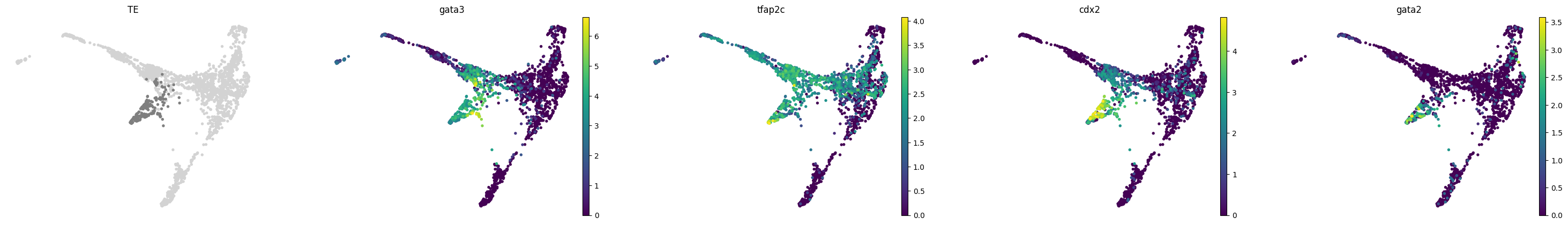

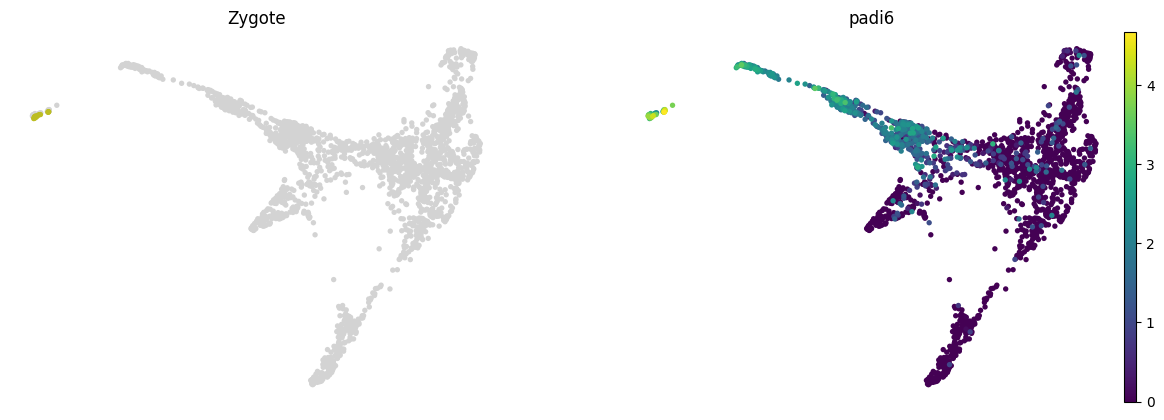

for stage, genes in lineage_markers.to_dict('list').items():
    common_genes = adata.var_names.intersection([str.lower(g) for g in genes if g != ''])

    # print(stage, common_genes)
    sc.pl.draw_graph(adata, color=['stage', *common_genes], title=[stage, *common_genes],
                     groups=stage, legend_loc=None, frameon=False, ncols=len(common_genes) + 1)

4 Save model

adata.write("../results/03_mouse.processed.h5ad")

5 4. OTHER

5.1 2. scGEN

scGen returns imputed counts only. In this case we are not able to run DEGs because we need to have normalized counts. The predict function also won’t work because we don’t have any perturbation in the dataset.

import scgen
mscgen = scgen.SCGEN.load("../results/02_mouse_integration/scgen/")
corrected_adata = mscgen.batch_removal()
corrected_adata
sc.pp.neighbors(corrected_adata, use_rep='corrected_latent')
sc.tl.draw_graph(corrected_adata)
sc.pl.draw_graph(corrected_adata, color=['ct', 'Stage'], wspace=0.4, frameon=False)
sc.tl.umap(corrected_adata)
sc.pl.umap(corrected_adata, color=['batch', 'Stage'], wspace=0.4, frameon=False)

5.2 3. Integration stats

from rich import print
from scib_metrics.benchmark import Benchmarker
bm = Benchmarker(
    adata,
    batch_key="batch",
    label_key="ct",
    embedding_obsm_keys=["X_pca", "X_scVI", "X_scANVI", "X_scgen"],
    n_jobs=-1,
)
bm.benchmark()
bm.plot_results_table(min_max_scale=False)
from pysankey import sankey


%run ../scripts/helpers.py
sc.tl.dendrogram(adata, groupby="leiden", key_added="dendrogram_leiden")
sc.tl.dendrogram(adata, groupby="ct", key_added="dendrogram_ct")
with plt.rc_context({"figure.figsize": [20, 20]}):
    sc.pl.correlation_matrix(adata, groupby="ct", show_correlation_numbers=True)
_ = sc.pl.dendrogram(adata, groupby="ct", orientation='top')

5.3 3.1. Prediction

def get_predictions(lvae: scvi.model.SCANVI, threshold: float = 0.85):
    df = pd.DataFrame(zip(predictions.idxmax(axis=1), predictions.max(axis=1)), columns=['predicted', 'score'])
    df['predicted_filt'] = 'Unknown'
    df.loc[df.score >= threshold, 'predicted_filt'] = df.loc[df.score >= threshold, 'predicted']
    df['uncertainty'] = np.maximum(1 - df.score, 0)

    return df
lvae = scvi.model.SCANVI.load("../results/02-mouse/")
adata.obs[["predicted", "score", "predicted_filt", "uncertainty"]] = get_predictions(lvae).values
sc.pl.draw_graph(adata, color=['ct', 'predicted', 'uncertainty'], frameon=False, ncols=3)
df = adata.obs.groupby(["ct", "predicted"]).size().unstack(fill_value=0)
norm_df = df / df.sum(axis=0)

plt.figure(figsize=(8, 8))
_ = plt.pcolor(norm_df)
_ = plt.xticks(np.arange(0.5, len(df.columns), 1), df.columns, rotation=90)
_ = plt.yticks(np.arange(0.5, len(df.index), 1), df.index)
_ = plt.colorbar()
plt.xlabel("Predicted")
plt.ylabel("Observed")
# Stats
from sklearn.metrics import balanced_accuracy_score

balanced_accuracy_score(adata.obs["ct"].values, adata.obs["predicted"].values)
